Good OBDII unit for Leaf

Forums › Transport (cars, bikes and boats) › Good OBDII unit for Leaf

daparrot

128 posts

Master Geek

#218049 23-Jul-2017 22:25

I'm looking for a good unit to use with LeafSpy and thinking of one of these

KONNWEI KW902 ELM327 Mini Bluetooth Wireless Car OBDII

Is it any good?

Anyone got any advice on one that can be found locally?

Linuxluver

5828 posts

Uber Geek

Trusted

Subscriber

#1828090 24-Jul-2017 08:12

Hi

That one used to be recommended, but now is not. Here is what the Leaf Spy author says on his entry in the Google Play app market for Android (will be true for iOS, too, as far as the OBDII dongle is concerned).

"The Leaf Spy Pro application allows anyone with a Nissan Leaf electric vehicle, Android device with Bluetooth and a supported ELM327 OBDII Bluetooth adapter the ability to monitor their battery and other vehicle information normally visible only to the dealer.

Due to a recent cost reduction (and feature reduction) many of the cheap ELM327 OBDII Bluetooth adapters from Asia no longer work with the Leaf and report themselves to be version 2.1. The previously recommended Bluetooth Konnwei KW902 OBDII adapter is also no longer recommended as a batch of defective ones have made their way into the market. These will basically short out your Leaf's CAN bus (or any CAN bus they are plugged into). But when removed do not seem to cause any lasting damage.

With the release of version 0.39.97 LeafSpy Pro now supports two Bluetooth 4.x LE approved adapters. The recommended one is the LELink available from Amazon. Bluetooth 4.x LE has the advantage of not needing to be paired and lower power from both the Android device and the Leaf. The LELink is highly recommended and also works with the iOS version of LeafSpy Pro.

The built-in help file is available as a PDF by sending an email with subject "Android PDF Help" to WattsLeft.meter@gmail.com"

_____________________________________________________________________

I've been on Geekzone over 16 years..... Time flies....

Linuxluver

5828 posts

Uber Geek

Trusted

Subscriber

#1828091 24-Jul-2017 08:21

I have a WiFi OBDII dongle, but bluetooth seems like a good idea as sometimes I'd like to use wifi for internet and can't when wifi connected to the dongle, so I've ordered this one.

_____________________________________________________________________

I've been on Geekzone over 16 years..... Time flies....

trig42

5810 posts

Uber Geek

ID Verified

#1828100 24-Jul-2017 08:44

I have an LE Link (from Amazon). I don't have a Leaf, but it works just fine with my Mazdas, connecting to an Iphone.

daparrot

128 posts

Master Geek

#1828658 24-Jul-2017 20:07

Thanks I guess the "I want it now" impulse wont be fulfilled this time

I will order one from Amazon and give it a go..

Linuxluver:

Hi

That one used to be recommended, but now is not. Here is what the Leaf Spy author says on his entry in the Google Play app market for Android (will be true for iOS, too, as far as the OBDII dongle is concerned).

"The Leaf Spy Pro application allows anyone with a Nissan Leaf electric vehicle, Android device with Bluetooth and a supported ELM327 OBDII Bluetooth adapter the ability to monitor their battery and other vehicle information normally visible only to the dealer.

Due to a recent cost reduction (and feature reduction) many of the cheap ELM327 OBDII Bluetooth adapters from Asia no longer work with the Leaf and report themselves to be version 2.1. The previously recommended Bluetooth Konnwei KW902 OBDII adapter is also no longer recommended as a batch of defective ones have made their way into the market. These will basically short out your Leaf's CAN bus (or any CAN bus they are plugged into). But when removed do not seem to cause any lasting damage.

With the release of version 0.39.97 LeafSpy Pro now supports two Bluetooth 4.x LE approved adapters. The recommended one is the LELink available from Amazon. Bluetooth 4.x LE has the advantage of not needing to be paired and lower power from both the Android device and the Leaf. The LELink is highly recommended and also works with the iOS version of LeafSpy Pro.

The built-in help file is available as a PDF by sending an email with subject "Android PDF Help" to WattsLeft.meter@gmail.com"

daparrot

128 posts

Master Geek

#1828665 24-Jul-2017 20:37

Ok it pays not to read things on the phone.

I see this is available locally

Thanks

Bruce

Linuxluver:

I have a WiFi OBDII dongle, but bluetooth seems like a good idea as sometimes I'd like to use wifi for internet and can't when wifi connected to the dongle, so I've ordered this one.

Linuxluver

5828 posts

Uber Geek

Trusted

Subscriber

#1831693 26-Jul-2017 15:38

My "Nissan LeafSpy OBD2 Bluetooth Tool for Android" arrived today from Stahlcars (dot co dot nz). It was $76 incl shipping and GST. Arrived in 48 hours.

I've tested it out. It works really well. The Bluetooth is liberating. My previous, WiFi-only, dongle meant that went connected to it the phone concerned couldn't use WiFi OR mobile network to do anything. The phone was effectively then dedicated to logging LEAFSpy output and nothing else.

But with Bluetooth support I can connect to the dongle AND play music on the car system AND make / take a phone call on the hands-free.....and also use WiFi or mobile network at the same time.

I should have done this a long time ago.

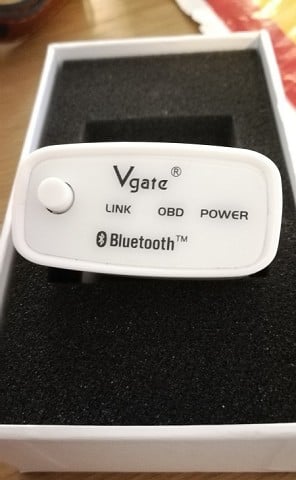

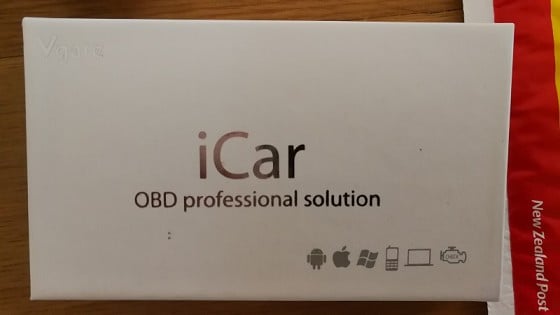

Here are some photos of the package and the unit.

_____________________________________________________________________

I've been on Geekzone over 16 years..... Time flies....

daparrot

128 posts

Master Geek

#1831715 26-Jul-2017 16:15

I went with the same supplier, mine should be here later today..

Linuxluver:

My "Nissan LeafSpy OBD2 Bluetooth Tool for Android" arrived today from Stahlcars (dot co dot nz). It was $76 incl shipping and GST. Arrived in 48 hours.

I've tested it out. It works really well. The Bluetooth is liberating. My previous, WiFi-only, dongle meant that went connected to it the phone concerned couldn't use WiFi OR mobile network to do anything. The phone was effectively then dedicated to logging LEAFSpy output and nothing else.

But with Bluetooth support I can connect to the dongle AND play music on the car system AND make / take a phone call on the hands-free.....and also use WiFi or mobile network at the same time.

I should have done this a long time ago.

Here are some photos of the package and the unit.
