Skinny BroadBand - Need Help to configure my Cisco C867VAE-K9

Forums › Spark New Zealand (including Skinny and BigPipe) › Skinny BroadBand - Need Help to configure my Cisco C867VAE-K9

barrynz

39 posts

Geek

#240870 30-Sep-2018 19:26

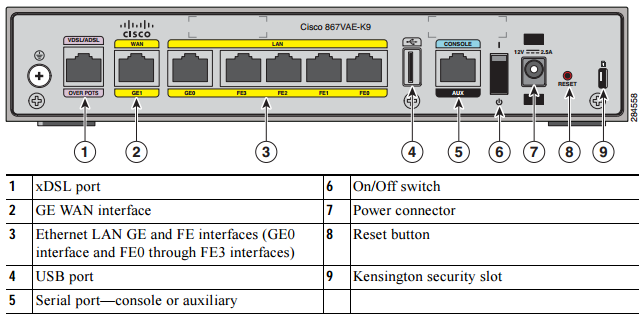

Hi All,

Does anyone knows how to configure a Cisco 867VAE to my Skinny Broadband VDSL2 - i have managed to have my vdsl connection but i cannot see any internet pages through it, any help would be appreciated?

Thanks

Barry

Here is the running config going on in my router:

c860vae-advsecurityk9-mz.157-3.M2.bin

R1-C867VAE#show running-config
Building configuration...

Current configuration : 4151 bytes
!
version 15.7
no service pad
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R1-C867VAE
!
boot-start-marker
boot-end-marker
!
!
enable secret 5 $1$0VER$cRREqm1C6s8bxyxv64IJS/
!
no aaa new-model
wan mode dsl
clock timezone GMT 12 0
!
!
!
ip dhcp excluded-address 1.1.1.1
!
ip dhcp pool BB
import all
network 1.1.1.0 255.255.255.0
default-router 1.1.1.1
dns-server 1.1.1.1
lease 0 2
!
ip dhcp pool ccp-pool
import all
default-router 1.1.1.1
lease 0 2
!
!
!
ip domain name mydomain.com
ip cef
no ipv6 cef
!
!
flow record nbar-appmon
match ipv4 source address
match ipv4 destination address
match application name
collect interface output
collect counter bytes
collect counter packets
collect timestamp absolute first
collect timestamp absolute last
!
!
flow monitor application-mon
cache timeout active 60
record nbar-appmon
!
parameter-map type inspect global
max-incomplete low 18000
max-incomplete high 20000
nbar-classify
!
!
!
!
!
!
!
!
!
!
!
!
object-group network Others_dst_net
any
!
object-group network Others_src_net
any
!
object-group service Others_svc
ip
!
object-group network Web_dst_net
any
!
object-group network Web_src_net
any
!
object-group service Web_svc
ip
!
object-group network local_cws_net
!
object-group network local_lan_subnets
1.1.1.0 255.255.255.0
!
object-group network vpn_remote_subnets
any
!
username Admin password 7 12090404011C03162E
!
!
controller VDSL 0
!
!
class-map type inspect match-all INTERNAL_DOMAIN_FILTER
class-map type inspect match-any Others_app
match protocol https
match protocol smtp
match protocol pop3
match protocol imap
match protocol sip
match protocol ftp
match protocol dns
match protocol icmp
class-map type inspect match-any Web_app
match protocol http
class-map type inspect match-all Others
match class-map Others_app
match access-group name Others_acl
class-map type inspect match-all Web
match class-map Web_app
match access-group name Web_acl
!
policy-map type inspect LAN-WAN-POLICY
class type inspect Web
inspect
class type inspect Others
inspect
class class-default
drop log
!
zone security LAN
zone security WAN
zone security VPN
zone security DMZ
zone-pair security LAN-WAN source LAN destination WAN
service-policy type inspect LAN-WAN-POLICY
!
!
!
!
!
crypto isakmp policy 1
!
!
!
!
!
!
!
!
!
interface ATM0
no ip address
no atm ilmi-keepalive
!
interface ATM0.1 point-to-point
pvc 0/100
pppoe-client dial-pool-number 1
!
!
interface Ethernet0
no ip address
zone-member security DMZ
!
interface FastEthernet0
no ip address
!
interface FastEthernet1
no ip address
!
interface FastEthernet2
no ip address
!
interface FastEthernet3
no ip address
!
interface GigabitEthernet0
no ip address
!
interface GigabitEthernet1
no ip address
ip tcp adjust-mss 1412
shutdown
duplex auto
speed auto
!
interface Vlan1
ip address 1.1.1.1 255.255.255.0
ip nbar protocol-discovery
ip flow monitor application-mon input
ip flow ingress
ip flow egress
zone-member security LAN
ip tcp adjust-mss 1412
load-interval 30
!
interface Dialer0
no ip address
!
interface Dialer1
ip address negotiated
ip mtu 1452
encapsulation ppp
ip tcp adjust-mss 1412
dialer pool 1
dialer-group 1
ppp mtu adaptive
ppp authentication chap pap callin
ppp chap hostname ppp
ppp chap password 7 06575D72181B5F
ppp pap sent-username ppp password 7 00554155500E5D
!
ip forward-protocol nd
ip http server
ip http upload enable path flash:
ip http upload overwrite
no ip http secure-server
!
!
ip dns server
!
ip access-list extended Others_acl
permit object-group Others_svc object-group Others_src_net object-group Others_dst_net
ip access-list extended Web_acl
permit object-group Web_svc object-group Web_src_net object-group Web_dst_net
ip access-list extended nat-list
permit ip object-group local_lan_subnets any
deny ip any any
!
dialer-list 1 protocol ip permit
!
access-list 23 permit 1.1.1.0 0.0.0.255
!
!
line con 0
no modem enable
line aux 0
line vty 0 4
login
transport input none
!
scheduler allocate 60000 1000
!
end

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#2098961 30-Sep-2018 22:03

been ages since i've read a csico conf, looks like your missing the correct vlan (10) and not binding the correct transport (PTM)

do note, on skinny your on your own.

Skinny only support the hg659, all support should be carried out with that device.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

barrynz

39 posts

Geek

#2098963 30-Sep-2018 22:10

As you can see i have vdsl connection:

Not worried about Skinny's support :), i want to have this as my main vdsl router due to security.

R1-C867VAE>show controllers vdsL 0
Controller VDSL 0 is UP

Daemon Status: NA

XTU-R (DS) XTU-C (US)
Chip Vendor ID: 'BDCM' 'BDCM'
Chip Vendor Specific: 0x0000 0xB1AD
Chip Vendor Country: 0xB500 0xB500
Modem Vendor ID: 'CSCO' 'BDCM'
Modem Vendor Specific: 0x4602 0xB1AD
Modem Vendor Country: 0xB500 0xB500
Serial Number Near: GMK193801HW 867VAE- 15.7(3)M
Serial Number Far: AA1318FE15R-11
Modem Version Near: 15.7(3)M
Modem Version Far: 0xB1AD

Modem Status: TC Sync (Showtime!)

DSL Config Mode: AUTO
Trained Mode: G.993.2 (VDSL2) Profile 17a
TC Mode: PTM
Selftest Result: 0x00
DELT configuration: disabled
DELT state: not running

Full inits: 1
Failed full inits: 0
Short inits: 0
Failed short inits: 0

Firmware Source File Name
-------- ------ ----------
VDSL embedded N/A

Modem FW Version: 25c
Modem PHY Version: A2pv6C039t.d25c
Trellis: ON ON
SRA: disabled disabled
SRA count: 0 0
Bit swap: enabled enabled
Bit swap count: 18 2
Line Attenuation: 22.3 dB 0.0 dB
Signal Attenuation: 0.0 dB 0.0 dB
Noise Margin: 15.0 dB 6.1 dB
Attainable Rate: 41771 kbits/s 21836 kbits/s
Actual Power: 14.5 dBm 8.2 dBm
Per Band Status: D1 D2 D3 U0 U1 U2 U3
Line Attenuation(dB): 17.1 39.8 N/A 7.4 31.4 47.8 N/A
Signal Attenuation(dB): N/A N/A N/A 0.0 0.0 0.0 N/A
Noise Margin(dB): N/A N/A N/A N/A N/A N/A N/A
Total FECC: 0 0
Total ES: 0 0
Total SES: 0 0
Total LOSS: 0 0
Total UAS: 1198 1198
Total LPRS: 0 0
Total LOFS: 0 0
Total LOLS: 0 0

DS Channel1 DS Channel0 US Channel1 US Channel0
Speed (kbps): 0 35190 0 21836
SRA Previous Speed: 0 0 0 0
Previous Speed: 0 0 0 0
Reed-Solomon EC: 0 0 0 0
CRC Errors: 0 0 0 0
Header Errors: 0 0 0 0
Interleave (ms): 0.00 8.00 0.00 0.00
Actual INP: 0.00 0.01 0.00 0.00

Training Log : Stopped
Training Log Filename : flash:vdsllog.bin

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#2099058 1-Oct-2018 00:32

You have missed the actual details in my post, i recognize you have an active sync.

Check your using the correct vlan and PTM on the dsl interface.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

michaelmurfy

meow
13240 posts

Uber Geek

Moderator

ID Verified

Trusted

Lifetime subscriber

#2099060 1-Oct-2018 00:56

Also don't use 1.1.1.1 (see here: https://1.1.1.1)

Instead, use 192.168.1.0/24 or a private addressing range: https://en.wikipedia.org/wiki/Private_network

Michael Murphy | https://murfy.nz
Referral Links: Quic Broadband (use R122101E7CV7Q for free setup)

Are you happy with what you get from Geekzone? Please consider supporting us by subscribing.
Opinions are my own and not the views of my employer.

barrynz

39 posts

Geek

#2100328 2-Oct-2018 20:19

it is an internal ip address you should be able to use anything you like.

Spyware

3761 posts

Uber Geek

Lifetime subscriber

#2100330 2-Oct-2018 20:32

IETF says otherwise, and the address is neither A, B or C.

interface Ethernet0.10
encapsulation dot1Q 10
pppoe-client dial-pool-number 1

A complete example http://pingbin.com/2014/09/cisco-887va-m-vdsl2-pppoe-configuration/

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#2100334 2-Oct-2018 20:41

barrynz:

it is an internal ip address you should be able to use anything you like.

Unfortunately, it's this sort of action that ends up with providers getting questions like X site doesn't load for me! fix it it's all your fault.

Ends up being the ip range the customer is using as it's not intended for Internal network usage.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

sbiddle

30853 posts

Uber Geek

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#2100336 2-Oct-2018 20:47

barrynz:

it is an internal ip address you should be able to use anything you like.

A

B

C

In correct answer.

Just look at Cisco who decided to use 1.1.1.1 interally on their WLC's for management and the massive implications this is now causing since they used an IP address they should have never used.

RFC1918 exists for a reason, and using anything else is just plain dumb. It's not if it will cause you a headache, it's when.

Spyware

3761 posts

Uber Geek

Lifetime subscriber

#2100340 2-Oct-2018 20:51

hio77:

Unfortunately, it's this sort of action that ends up with providers getting questions like X site doesn't load for me! fix it it's all your fault.

Ends up being the ip range the customer is using as it's not intended for Internal network usage.

Reminds me of someone who had a static address of 192.168.1.x/8 on their PC.

RunningMan

8953 posts

Uber Geek

#2100341 2-Oct-2018 20:52

barrynz: [snip]

it is an internal ip address you should be able to use anything you like.]

Not if you want to connect it to the publicly routable internet.

https://www.iana.org/assignments/iana-ipv4-special-registry/iana-ipv4-special-registry.xhtml

Use something that is Private Use.

Suggest you stick with the Skinny supplied HG659 if IP address space is new to you.

barrynz

39 posts

Geek

#2101854 4-Oct-2018 22:45

Just wanted to give you a massive thank youuuuu you are a Genius, thanks a lot, i got it working finally, however i need to hone it a bit, and i had to play with ethernet 0 interface and ethernet 0.10 until i made it operating, but your help was a massive help, thanks heaps.
