New Skinny connection but no ONT Power brick

Forums › Spark New Zealand (including Skinny and BigPipe) › New Skinny connection but no ONT Power brick

mattwnz

20141 posts

Uber Geek

#292983 17-Dec-2021 19:05

So I moved into a new house but discovered that the previous owners have taken the power supply cable for the ONT. So I can't get internet . I contacted skinny and they gave me the chorus link https://www.chorus.co.nz/contact/ont-replacement to get a new cable sent to me as it appears this is very common thing to happen. It is the model 300. Don't know why they don't have them wired in to prevent this happening.

However while waiting for the cable which could be a week, I do already have another old Spark modem cable which is 12 V , 2.0 A, for one of the large white spark Fibre modems which is about 2-3 years old Huawei HG659b , and it appears the ONT is 12 V 1.5A according to the instructions. Anyone know if that can be used. It appears to fit in the hole.

Bung

6477 posts

Uber Geek

Subscriber

#2835064 17-Dec-2021 19:17

If it is a Huawei psu, at least one place is selling them as ONT 300 compatible. https://www.mobilestation.co.nz/huawei-switching-power-adaptor-hw-120200a6w.html

wellygary

8312 posts

Uber Geek

#2835070 17-Dec-2021 19:52

A power supply needs its Amps to be equal or higher than the device that will draw current,

The device will only pull what it needs,

BUT

You need to make sure the Voltage and centre pin polarity are equal on both the Device and power supply,

-Also the plug needs to fit the socket

tangerz

625 posts

Ultimate Geek

#2835118 17-Dec-2021 22:07

Looks like you should be fine. Voltage is the same and 2.0A is higher than the 1.5A required.

I had the same issue with a missing power adapter for the ONT when I moved house a few years back. Used one from an old router which had suitable voltage/current until tech came to replace it (over a week later!) Funny thing was, he told me he couldn't just replace the missing power adapter, he had to replace the whole ONT!!! (This was on Northpower Fibre) Apparently something to do with them only being supplied together!?!? He thought it was stupid as well.

mattwnz

20141 posts

Uber Geek

#2835128 17-Dec-2021 22:44

tangerz:
Looks like you should be fine. Voltage is the same and 2.0A is higher than the 1.5A required.

I had the same issue with a missing power adapter for the ONT when I moved house a few years back. Used one from an old router which had suitable voltage/current until tech came to replace it (over a week later!) Funny thing was, he told me he couldn't just replace the missing power adapter, he had to replace the whole ONT!!! (This was on Northpower Fibre) Apparently something to do with them only being supplied together!?!? He thought it was stupid as well.

Thanks I thought so based on the specs of the ONT. I just wanted sure if the centre pin is positive or not. I think they are normally centre positive. Spark modem transformer doesn't actually show what the centre pin is

mattwnz

20141 posts

Uber Geek

#2835129 17-Dec-2021 22:45

Bung: If it is a Huawei psu, at least one place is selling them as ONT 300 compatible. https://www.mobilestation.co.nz/huawei-switching-power-adaptor-hw-120200a6w.html

Thanks. Hoarding old modems does sometimes have its benefits

Lorenceo

904 posts

Ultimate Geek

Trusted

#2835240 18-Dec-2021 12:08

mattwnz:

I just wanted sure if the centre pin is positive or not. I think they are normally centre positive.

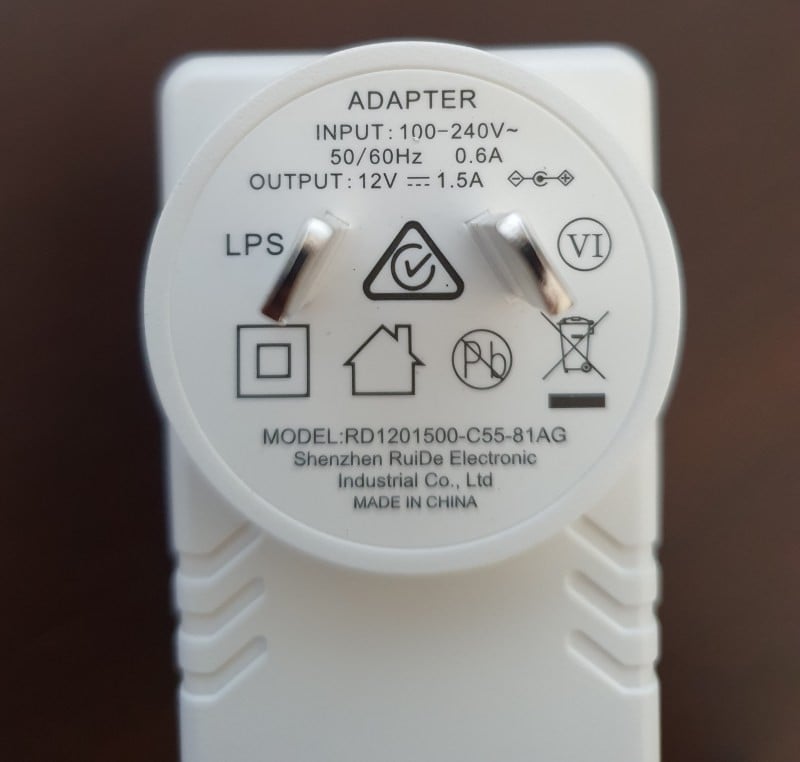

I can confirm the model 300 ONT's PSU is centre positive. See below. So are the Huawei PSUs for many of their modems/routers including the B315s, B618, HG630b, HG659 and HG659b.

nztim

3812 posts

Uber Geek

ID Verified

Trusted

TEAMnetwork

Subscriber

#2835255 18-Dec-2021 13:45

Just wait for the official chorus PSU, if you blow something up you will be 100% liable for the damages

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

quickymart

13924 posts

Uber Geek

ID Verified

#2835283 18-Dec-2021 15:12

^ this. If it explodes or catches fire, it's fully on you to pay for all repairs. Better to wait for the proper one to arrive.
