Hi folks,



While I wait for my fibre connection to be sorted, i've picked up a SmartModem2 on a Portable Wireless plan from Spark, intending to use it temporarily as my main connection and thereafter as a WAN2 failover for the main fibre connection.

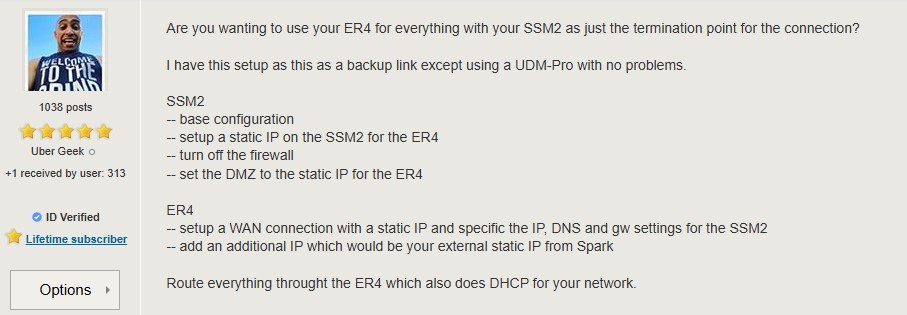

I'm planning on setting it up per below on a thread discussing a similar scenario :





However that thread was about whether it's possible to set up the SSM2 as a pure bridge device, which I understand is not possible. I realise I'm going to get stuck behind a double NAT scenario and can deal with that until the fibre arrives, my self hosting is via Tailscale anyway so the double NAT isn't an issue for that, possibly only for online gaming etc.

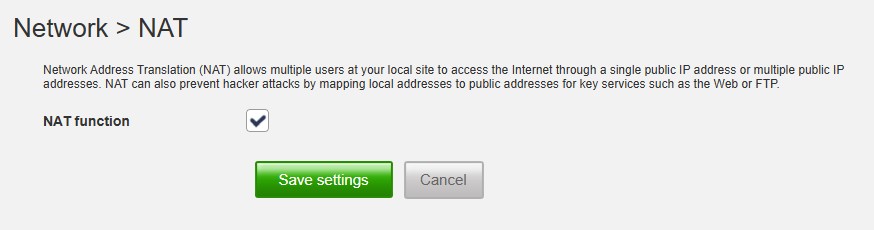

 In the above scenario, should I disable NAT on the SSM2, or not? obviously the UDMSE handles all this sort of stuff capably.





Any other tips for achieving the scenario I'm after are gratefully received.



Thanks!



Daniel


Create new topic
Jiriteach
1139 posts

Uber Geek
+1 received by user: 373

ID Verified
Trusted
Lifetime subscriber

  #3261257 19-Jul-2024 09:20
Send private message

Leave it enabled



I have the same setup when the SSM2 as my failover on my UDM Pro's.





-- opinions expressed by me are solely my own. ie - personal




BlackrazorNZ

41 posts

Geek
+1 received by user: 24

ID Verified

  #3261412 19-Jul-2024 12:38
Send private message

Thanks for that. Appreciated.

I note in your original comment to add a second IP on the wan - is that just because the OP on that post had a static IP? Or do I need to do that with dynamic dns for a dynamic IP as well?

Jiriteach
1139 posts

Uber Geek
+1 received by user: 373

ID Verified
Trusted
Lifetime subscriber

  #3261413 19-Jul-2024 12:42
Send private message

BlackrazorNZ: Thanks for that. Appreciated.

I note in your original comment to add a second IP on the wan - is that just because the OP on that post had a static IP? Or do I need to do that with dynamic dns for a dynamic IP as well?



Yup and else the UDM would route that through WAN1 when its a hop across the network. If you dont have a static IP - no worries. Just skip that.





-- opinions expressed by me are solely my own. ie - personal
