Looking for suggestions on omnidirectional 4G modem options

Forums › New Zealand Mobile and Wireless › Looking for suggestions on omnidirectional 4G modem options

jenz888

25 posts

Geek

#312567 28-Apr-2024 13:47

Hi there,

Background Info

I'm located in the Coromandel area (36°51'59.28"S, 175°32'52.18"E)

ISP is Netspeed, which uses ONE network.

In 2021 I was having speed issues on rural wireless broadband, so I changed the modem to a Huawei B818, and initially one external hi-gain Blackhawk antenna. As helpfully suggested by @coffeebaron ... Detailed here: https://www.geekzone.co.nz/forums.asp?forumId=42&topicId=284593

Just changing the modem made a noticeable difference. Adding the antenna, even more so.

Since that discussion, I added another of the same antenna (some time last year). That gave some additional speed improvements.

For past few months speeds have dropped. Previously I was getting around 30 to 70 Mbps fairly consistently (once Vodafone / One removed their 30 Mbps speed cap earlier last year).

I went away for nearly three months over Christmas / early 2024, and on my return it's been sitting at around 3 to 20 Mbps.

Today I discovered 2nd ext. port on modem is no longer working. So looks like I'm back to one antenna. Might explain the speed drop, as both were originally working.

Connecting to the same tower (PCI 420 / TAC 41744 / ECI 1455363), B28, with my Samsung phone, I get around 140 Mbps down, 6 Mbps up. Holding phone in same location as the antenna.

So I'm thinking because the two is essentially behind a hill, directional antennas are not the way to go. Obviously my phone has omni-directional antenna, and it gets much better throughput than the hi-gain Blackhawks.

My thoughts and Questions

Am i thinking along the right lines re getting an exterior omnidirectional modem/antenna. I asked ISP about it, and they suggested the Nokia FastMile 4G 05-A, paired with a Mikrotik hap ac2 router. Which they can supply for around $372 all up.

I can find almost no consumer info on this modem online, aside from FCC documents, user manuals, and some 2nd hand units for sale from various countries. I'm guessing it's a fairly dated device? Although their newer FastMile 5G Receiver 5G16-A also has very little info online. Even Nokia's product for the 4G modem divulges minimal info. The 5G product page isn't much better.

If I stick with the two hi-gain antennas, I'm looking at a new modem (due to one jack not working). Likely around $200.

1) Before splashing out on an omnidirectional antenna, it would be great to hear if anyone else has experience with them (in rural environment, potentially with obstructed tower access).

2) Also, does anyone have experience with the Nokia unit?

3) Any recommendations for a better unit?

4) Let's say I do go with an omni antenna (such as the Nokia), would there be any advantage going with their newer 5G unit? To future-proof the system? Or is it unlikely there will ever be rural 5G service?

Pretty strapped for cash at the moment, so I'm keen to do this as cost effectively as I can.

Thanks very much ...

Jonathan

nztim

3824 posts

Uber Geek

ID Verified

Trusted

TEAMnetwork

Subscriber

#3223690 28-Apr-2024 14:10

One word…. Starlink

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

jenz888

25 posts

Geek

#3223692 28-Apr-2024 14:14

Thanks. Had considered that. Currently outside my budget. Both the plans and the hardware.

Although, I see the HW has come down from when I last looked into it. And they now have a "DEPRIORITIZED" plan. Any experience with that?

nztim

3824 posts

Uber Geek

ID Verified

Trusted

TEAMnetwork

Subscriber

#3223701 28-Apr-2024 14:51

Deprioritised plan runs at full speed, but full paying $159 customers Get the first bite
of the cherry during peak hours

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

jenz888

25 posts

Geek

#3223705 28-Apr-2024 14:58

Interesting. I since found this thread, and comment from @coffeebaron on a speed test. https://www.geekzone.co.nz/forums.asp?forumid=49&topicid=311932&page_no=2#3202389

Although, I gather it can vary a lot, depending on peak / off-peak usage.

Keen to know how slow it'll potentially get. Still searching for comments on that. $79 is only $14 more than I pay now. Just need to save a bit up for the hardware. Seriously considering it.

Jase2985

13465 posts

Uber Geek

ID Verified

Lifetime subscriber

#3223706 28-Apr-2024 14:59

jenz888:

And they now have a "DEPRIORITIZED" plan. Any experience with that?

Whole thread talking about that :)

SATTV

1648 posts

Uber Geek

ID Verified

#3223709 28-Apr-2024 15:01

Considering you have the Blackhawk antenna already, why not just change the B618?

Netspeed did not lock their sims to a device ( well they never used to )

John

I know enough to be dangerous

nztim

3824 posts

Uber Geek

ID Verified

Trusted

TEAMnetwork

Subscriber

#3223711 28-Apr-2024 15:16

Basically if an address cant get 50mbps VDSL or better I am suggesting starlink or a local WISP

4G FWA is toast, its oversubscribed on all networks pretty much everywhere

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

Sharesies

Trade NZ and US shares and funds with Sharesies (affiliate link).

MaxineN

Max
1772 posts

Uber Geek

ID Verified

Trusted

Subscriber

#3223713 28-Apr-2024 15:27

Have to agree with Tim's point.

Even if you got the RGW sorted with both antennas working, Starlink still crushes it especially in price. Deprio is $79 a month, just get refurb hardware and you've spent maybe just a bit more initially but it's worth it.

Plus you're not sharing contention with the township itself from the tower.

That tower I believe from memory is over looking the hill of the township. There is a much more dedicated tower in the actual township(also by memory it has all LTE layers barring L9) so unless you point your antennas via a mast at the right direction, you'll be stuck on L7 and barely getting the L18 layer from the one on the hill.

In simpler words. Wouldn't try and salvage it. Go Starlink.

Ramblings from a mysterious lady who's into tech. Warning I may often create zingers.

jenz888

25 posts

Geek

#3223715 28-Apr-2024 15:32

Yes, Starlink is looking like a better option. Especially for upload speed. I often get around 2 to 5 Mbps max on upload, especially when using a band that gives better download (B1). On B27 I get better upload, but much slower d/l. During public holidays, it all goes to shit no matter what band I use.

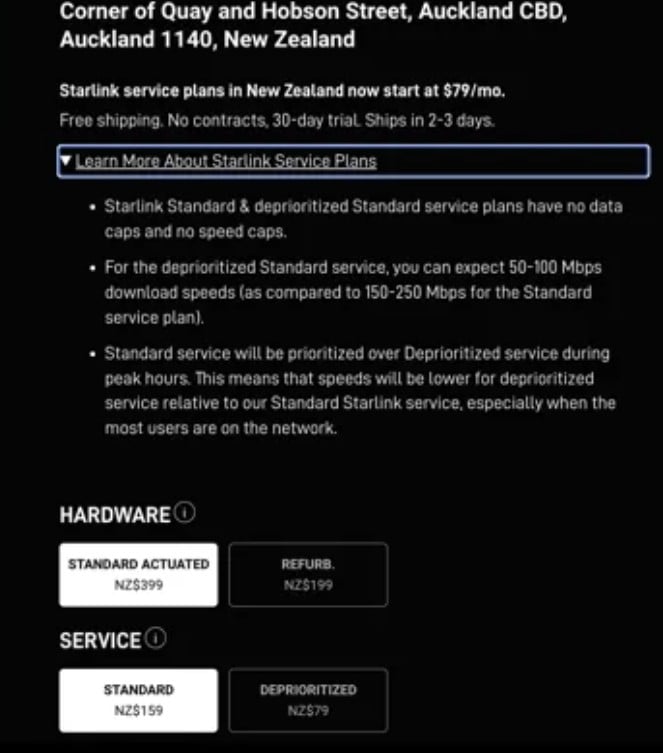

Any idea how to get the refurbished hardware? I'm only seeing $599 on Starlink site. But I see mention of the $399 new hardward and $199 refurb option elsewhere, but not how to get it. Eg.here: https://au.pcmag.com/networking/104136/starlink-offers-50-price-cut-if-you-can-handle-slower-speeds

At that price, it's a no brainer. At $599 for h/w, it's not an option just now.

jenz888

25 posts

Geek

#3223716 28-Apr-2024 15:33

MaxineN:

Deprio is $79 a month, just get refurb hardware and you've spent maybe just a bit more initially but it's worth it.

Any idea how?

jenz888

25 posts

Geek

#3223717 28-Apr-2024 15:39

Do any of you know what qualifies as "poor Internet service" in the the Remote Users Scheme grant?

MaxineN

Max
1772 posts

Uber Geek

ID Verified

Trusted

Subscriber

#3223720 28-Apr-2024 15:55

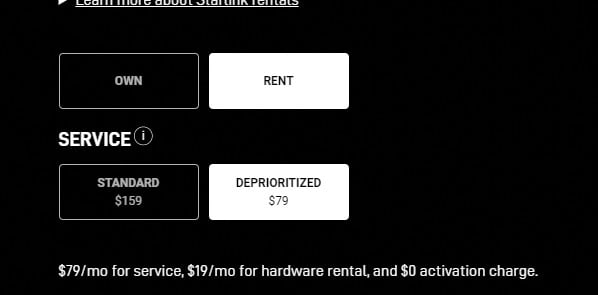

Hmmm.. Appears they removed the refurb option.

$20 rent isn't that bad. Could always go on Trademe and find a kit :~)

Also not surprised the upload is single digits. Pathloss on the uplink is insane past 7km even with LOS, unless you can bring your RSRP up and attach onto the L18 layer(4x4 config, big mid band, would bring your uploads to double digits).

Ramblings from a mysterious lady who's into tech. Warning I may often create zingers.

kiruti

24 posts

Geek

#3223752 28-Apr-2024 18:28

MaxineN:

Hmmm.. Appears they removed the refurb option.

$20 rent isn't that bad. Could always go on Trademe and find a kit :~)

Also not surprised the upload is single digits. Pathloss on the uplink is insane past 7km even with LOS, unless you can bring your RSRP up and attach onto the L18 layer(4x4 config, big mid band, would bring your uploads to double digits).

I've set up the refurb kit for someone I know personally and the WiFi range from their provided router is shockingly poor. Walk 5 metres away from it and it's nearly completely dropped out. Have had to buy their Ethernet adapter, support are useless.

jenz888

25 posts

Geek

#3224187 29-Apr-2024 13:44

SATTV:

Considering you have the Blackhawk antenna already, why not just change the B618?

Netspeed did not lock their sims to a device ( well they never used to )

John

Thanks John. Yes, that's for sure an option on the table.

I was already considering changing to better modem/antenna configuration (such as the Nokia Freemile 4G), as it seems I don't have radio line-of-sight (I'd expect much faster connection if I did, considering what I achieve on my phone with its tiny little omni-directional antenna), so a less directional approach is likely to improve things. Even with both antenna Blackhawk ants. operational, speed varied greatly. Weekends and holidays slow things down substantially. The effect of which is not so impactful when I have higher speeds to begin with.

Replacing the modem is around $150 to $200, depending on the day (TradeMe).

If I can get the Starlink hardware at a discounted price (refurb. perhaps), that's also now an option on the table.

Jonathan
