I want to use my Linksys PAP2T with my existing structure cabling, and am thus looking for some RJ11 to RJ45 cables, any suggestions on where to find these? (aka plug existing analogue cordless phone into RJ45 socket in the lounge and keep the PAP2T in the cupboard with the router and switch etc)

Will the RJ12 to RJ45 cables from Cables Direct be suitable?

http://www.cablesdirect.co.nz/catalog/entry?entry=384

Thanks

View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2
2990 posts

Uber Geek
+1 received by user: 829

Subscriber

  Reply # 960837 3-Jan-2014 16:53
One person supports this post
Send private message

Yep RJ12 will be fine. Just has the extra two pins the RJ11 is missing.

795 posts

Ultimate Geek
+1 received by user: 201

Subscriber

  Reply # 960877 3-Jan-2014 17:37
Send private message

Just to help with visualising the pinouts on the RJ Plugs (wired with ribbon cable for voice use)
here is a little pic

The Handset cord plug is also reffered to as RJ10

The discription after the name reffers to the number of Pins and then the number of Pins Connected








3347 posts

Uber Geek
+1 received by user: 359

Trusted

  Reply # 960881 3-Jan-2014 17:39
Send private message

You can actually put an RJ-11 plug in an RJ 45 socket but i don't think it's recommended.





795 posts

Ultimate Geek
+1 received by user: 201

Subscriber

  Reply # 960883 3-Jan-2014 17:42
Send private message

Zeon: You can actually put an RJ-11 plug in an RJ 45 socket but i don't think it's recommended.


Correct as the edges of the plug push up the sprung pins in the socket, and bend them up, so when you try to then use the socket for a data outlet later you have miss connections

4229 posts

Uber Geek
+1 received by user: 1122


  Reply # 960884 3-Jan-2014 17:43
Send private message

Zeon: You can actually put an RJ-11 plug in an RJ 45 socket but i don't think it's recommended.


It will work quite happily. The problem can occur when you need to use an RJ45 back in the socket, and the outer pins are damaged.

Awesome
4745 posts

Uber Geek
+1 received by user: 1034

Trusted
Subscriber

  Reply # 960889 3-Jan-2014 18:02
Send private message

RunningMan:
Zeon: You can actually put an RJ-11 plug in an RJ 45 socket but i don't think it's recommended.


It will work quite happily. The problem can occur when you need to use an RJ45 back in the socket, and the outer pins are damaged.


Does using RJ12 instead of RJ11 solve this? I've always wondered. Will a RJ12 cable fit into a device (like a phone) that is expecting a RJ11?




Twitter: ajobbins


2990 posts

Uber Geek
+1 received by user: 829

Subscriber

  Reply # 960891 3-Jan-2014 18:18
Send private message

ajobbins:
RunningMan:
Zeon: You can actually put an RJ-11 plug in an RJ 45 socket but i don't think it's recommended.


It will work quite happily. The problem can occur when you need to use an RJ45 back in the socket, and the outer pins are damaged.


Does using RJ12 instead of RJ11 solve this? I've always wondered. Will a RJ12 cable fit into a device (like a phone) that is expecting a RJ11?


Yes because the positions are still there on an RJ11 just not the pins.

795 posts

Ultimate Geek
+1 received by user: 201

Subscriber

  Reply # 960893 3-Jan-2014 18:22
Send private message

ajobbins: Does using RJ12 instead of RJ11 solve this? I've always wondered. Will a RJ12 cable fit into a device (like a phone) that is expecting a RJ11?


Yes as an RJ11 has the same basic profile as a RJ12 but the 2 outer pins are either blank (not installed) or the plug is molded without the slots - but the same dosent apply the other way around as a RJ12 socket can have the two outer spring pins damaged when a all molded RJ11 or RJ10 is inserted. Just like an RJ45 socket can be damaged with an RJ10, 11 or 12 plug inserted in them (even though it will fit)

1889 posts

Uber Geek
+1 received by user: 119

Trusted

  Reply # 961567 5-Jan-2014 16:31
Send private message

They would be suitable. Alternatively I could make some and courier them to you. PM me the length you need for each cable and your physical delivery address for a courier.




Qualified in business, certified in fibre, stuck in copper, have to keep going  ^_^

JWR

731 posts

Ultimate Geek
+1 received by user: 236


  Reply # 961678 6-Jan-2014 02:44
Send private message


If you are making a RJ45 --> RJ11 cable, then what is the best cable to use?

Would you use Cat 5/6 and cut off the spare pairs at the RJ11 end? Or... use a 4 core cable?

1889 posts

Uber Geek
+1 received by user: 119

Trusted

  Reply # 974538 26-Jan-2014 10:57
Send private message

You would use a stranded flat cable. Find an old BT cable that you don't need anymore and chop the BT plug off. Need to use a "flat" RJ45 plug to hold the cable in.




Qualified in business, certified in fibre, stuck in copper, have to keep going  ^_^

1330 posts

Uber Geek
+1 received by user: 278

Trusted

  Reply # 1456517 24-Dec-2015 14:24
Send private message

Having a bit of trouble trying to do the same thing.

Cat6 from patch panel to wall jackpoint, cable tested successfully with testing tool either end.

Have then snipped off the RJ11 connector to attach RJ45 connector instead, but the phone line is dead when I connect it to same jackpoint. Using the cable testing tool, only the 3rd wire lights up.

The phone cable comes out of the ONT POTS1 port.  I snipped where this was originally scotchlocked to the blue pair of a cat6 cable strung under the house to connect to the copper ETP.

Crimped on an RJ45 connector:

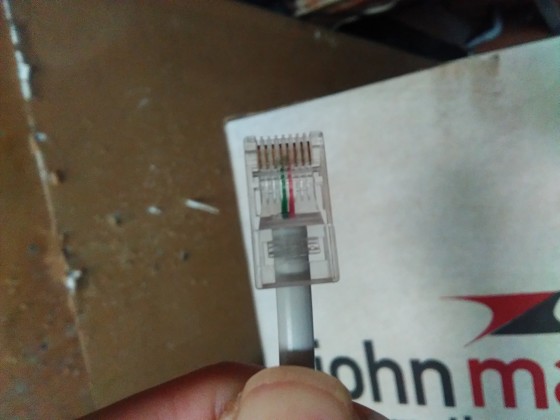

Crimped the same RJ45 to the phone RJ11 cable.

RJ11 cable from ONT, RJ45 to patch panel (T568A), RJ45 from wall jack to RJ11 phone input.

Originally I wired them both the other way round, red then green, on both cables but no signal so tried green then red..

A bit stuck..


24991 posts

Uber Geek
+1 received by user: 4880

Moderator
Trusted
Biddle Corp
Subscriber

  Reply # 1456525 24-Dec-2015 14:44
Send private message

What sort of cable tester are you using? If it's one of the cheap $5 ones they actually pieces of junk and can deliver false results for some kinds of wiring faults.

Can you test the cable with another jack?

Assuming you have RJ11/12 and RJ45 on the middle pins it should work. Colour & polarity isn't important for a phone.


24991 posts

Uber Geek
+1 received by user: 4880

Moderator
Trusted
Biddle Corp
Subscriber

  Reply # 1456527 24-Dec-2015 14:46
Send private message

Just one other thought are the connectors and cable compatible? ie are you using stranded connectors for stranded cable? Mixing connectors and cable type (depending on the type of connector) can cause issues.

1330 posts

Uber Geek
+1 received by user: 278

Trusted

  Reply # 1456533 24-Dec-2015 14:56
Send private message

A cheap $5 dollar junk one..

The RJ11 cable is a flat one, is that stranded?  The RJ45 sockets are flat cable, stranded conductors
