#1942140 18-Jan-2018 19:59

1244 sounds interesting..

i wonder if chorus have possibly changed the ADSL maximum from 1344 (which there is a bug in chorus's system where it would not change the profile)

is this asid still on spark?

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

CitizenErased

207 posts

Master Geek

#1942141 18-Jan-2018 20:04

The line is still with Spark, but the broadband is with DTS.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1942155 18-Jan-2018 20:29

CitizenErased:

The line is still with Spark, but the broadband is with DTS.

Ah, Can't check the profile from my end.

Chorus recently made a change to their ADSL profile, I haven't got intel on what that change was, but it was causing a bit of an issue on their network.

My gut feel was it was upstream related, Seeing this it would not surprise me.

Ask DTS to run a short LQD and check the Upstream bitrate (FEC) graph for where the "max bitrate US" figure is.

If the Max line is right down at 1.2.... You have a profile error on chorus's end. (which is what it sounds like)

i'll do some big data mining into it, but as laptop is strategically left in the office it has to wait.

For VDSL, it should be about at the 50K mark with current profiles.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

CitizenErased

207 posts

Master Geek

#1942159 18-Jan-2018 20:39

Thanks for the advice, it's much appreciated. I can't migrate the client to Office 365 and a hosted PABX with 1.2 Mbps of upstream bandwidth.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1942184 18-Jan-2018 21:42

CitizenErased:

Thanks for the advice, it's much appreciated. I can't migrate the client to Office 365 and a hosted PABX with 1.2 Mbps of upstream bandwidth.

just had a powercut here, my ADSL line resynced to exactly 1244 upload with a high snr... highly suspect indeed there is a bit of a profile change at play and your caught up in the profile error issue!

Great to see it happen elsewhere tbh... I struggle to gain traction on it, Cleanup the lines i do find with it... One day i'll have to audit all our vdsl ciruits......

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1943607 19-Jan-2018 15:49

hio77:

CitizenErased:

Thanks for the advice, it's much appreciated. I can't migrate the client to Office 365 and a hosted PABX with 1.2 Mbps of upstream bandwidth.

just had a powercut here, my ADSL line resynced to exactly 1244 upload with a high snr... highly suspect indeed there is a bit of a profile change at play and your caught up in the profile error issue!

Great to see it happen elsewhere tbh... I struggle to gain traction on it, Cleanup the lines i do find with it... One day i'll have to audit all our vdsl ciruits......

Deep dive here, Statistically the above is invalid.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

deadlyllama

1262 posts

Uber Geek

Trusted

#1946833 25-Jan-2018 20:00

Here's my VDSL rewiring report.

I'm now living in the Manse (Minister's house) by the Presbyterian Church in Pleasant Point, near Timaru. Yes, I'm quitting IT and for the next two years will be a sole-charge ministry intern. Come say Hi if you're nearby.

Voyager said I should get "perfect" DSL based on the line length. The exchange building is literally over the road.

Found the master jack, unplugged the internal wiring from the back of it and plugged the modem in.

20Mbps up/down. Attainable downstream was wobbling all over the place. Here's a sample:

Upstream line rate (kbit/s): 17584
Downstream line rate (kbit/s): 22796
Maximum upstream rate (kbit/s): 21624
Maximum downstream rate (kbit/s): 26376
Upstream noise safety coefficient (dB): 9.2
Downstream noise safety coefficient (dB): 10.7
Upstream line attenuation (dB): 29.5
Downstream line attenuation (dB): 32.9
Upstream output power (dBmV): 4.1
Downstream output power (dBmV): 13.3
DSL up time: 0 days 20 hours 23 minutes 7 seconds

Went in to Timaru to get some scotchlok connectors and RJ11 plugs. Wired some cat5e up -- one pair to the line to the street, one pair to the back of the master jack. Other end, two RJ11 plugs, one for the DSL port on the modem and one for the phone port.

Plugged it in and:

Upstream line rate (kbit/s):29998
Downstream line rate (kbit/s):69996
Maximum upstream rate (kbit/s):38480
Maximum downstream rate (kbit/s):119063
Upstream noise safety coefficient (dB): 14.7
Downstream noise safety coefficient (dB): 17.7
Upstream line attenuation (dB): 9
Downstream line attenuation (dB):4.9
Upstream output power (dBmV):-8.7
Downstream output power (dBmV):14.5

I'm guessing the 30/70 is a linecard limitation :-(

The phone does not work for me, but I really only need the phone in the office by the modem anyway.

(edit: formatting - copy and paste from HG659 UI goes much better if you take it through a text editor)

Sharesies

Trade NZ and US shares and funds with Sharesies (affiliate link).

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1949887 1-Feb-2018 09:53

deadlyllama:

I'm guessing the 30/70 is a linecard limitation :-(

The phone does not work for me, but I really only need the phone in the office by the modem anyway.

(edit: formatting - copy and paste from HG659 UI goes much better if you take it through a text editor)

Totally missed tihs one, Yeah your on a ikanos linecard. 70/30 is the limit.

You may be likely to get a linecard switchout for vectoring which will do upto the full current maximums of 108/51

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

stevehodge

393 posts

Ultimate Geek

#1949897 1-Feb-2018 10:05

hio77:

You may be likely to get a linecard switchout for vectoring which will do upto the full current maximums of 108/51

Do you know what the timeline for that is, Hio? I'm also on a Ikanos and should see a decent improvement if the 70/30 limit were removed.

Jase2985

13459 posts

Uber Geek

ID Verified

Lifetime subscriber

#1949899 1-Feb-2018 10:07

is the linecard switchout happening for those getting UFB?

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1949906 1-Feb-2018 10:19

stevehodge:

hio77:

You may be likely to get a linecard switchout for vectoring which will do upto the full current maximums of 108/51

Do you know what the timeline for that is, Hio? I'm also on a Ikanos and should see a decent improvement if the 70/30 limit were removed.

Still very heavily rolling out the linecards themselves. Profiles may be awhile before fully flicked.

Massive bunch in chch coming up.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1949908 1-Feb-2018 10:19

Jase2985:

is the linecard switchout happening for those getting UFB?

particularly in non chorus areas.... Am not a fan, but hey that's business :L

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Valleyman

8 posts

Wannabe Geek

#1951455 4-Feb-2018 16:03

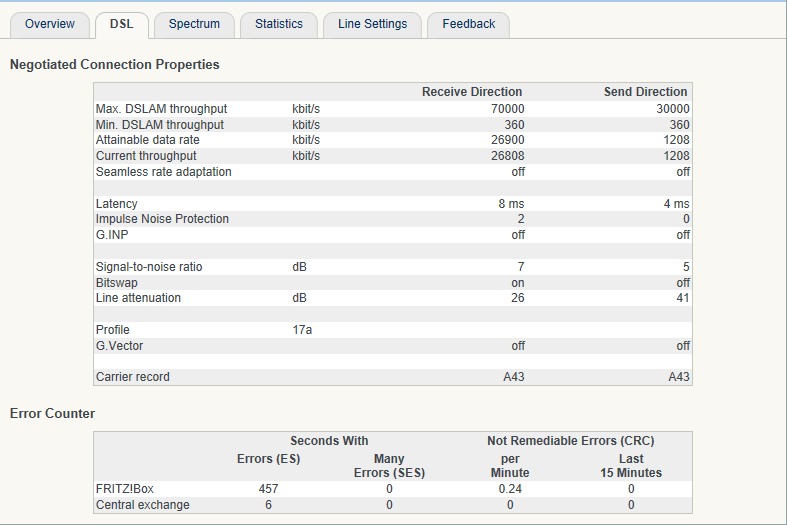

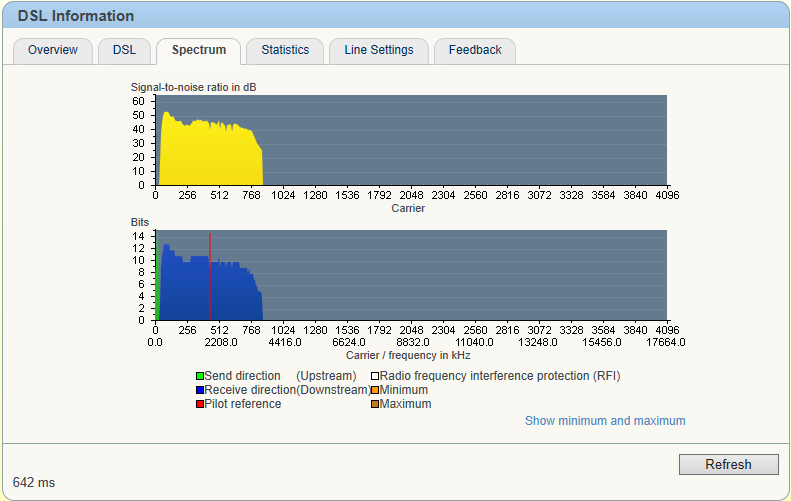

Hi guys here's my Vodafone VDSL2 connection stats, could someone who is knowledgeable about VDSL2 connections take a look at them & be able to tell me if sync speeds are normal or if I may have a fault on the line or something. I have a master filter splitter installed with seperate jack points for phone & modem. My modem is a Fritzbox 7340. I'm in Picton & have been told by Chorus via email that I'm about 560metres from the cabinet I'm connected to & a Chorus tech told me I'm 1.6kms away from exchange. Cheers for any advice is much appreciated

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1951457 4-Feb-2018 16:07

Arc doesn't look right for distance. But assuming distance to exchange fits. Dm me the address and ill validate agsinst surrounding lines and confirm if its exchange or cabinet fed.

Highly likely your borderline on the edge of exchange.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Conor nz

3 posts

Wannabe Geek

#1958264 14-Feb-2018 19:13

Hi Team - Long time lurker, first time poster.

Just moved into a house I bought in Geraldine - very close to the centre of town, so only a few hundred metres from the exchange, but my VDSL connection has some sub-par line attenuation (36dB up/41dB Down) and I'm only getting 13mbit down/ 3.6mbit up line speed

House is 1950's and has one of the old style drop lines that feeds into the roof. VDSL was installed a couple years ago - well before I moved in - and I believe the cable they ran down into a dedicated jack is Cat5e. I took the face plate off all the other phone jacks in the house and clipped the line so the VDSL is the only thing using any jack point in the house. Any tips?

The pic below is how the Cat5 wiring is connected up to my modem's VDSL cable.
