Forums › New Zealand Broadband › What cable do I need to connect router to wall socket?
Littlebush

4 posts

Wannabe Geek


#207657 7-Jan-2017 11:02
Send private message

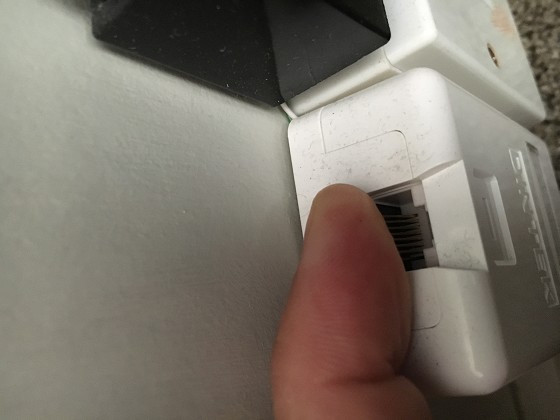

Hi, my cable from my router to the wall socket is too short and I want to buy a new longer one

I'm on VDSL

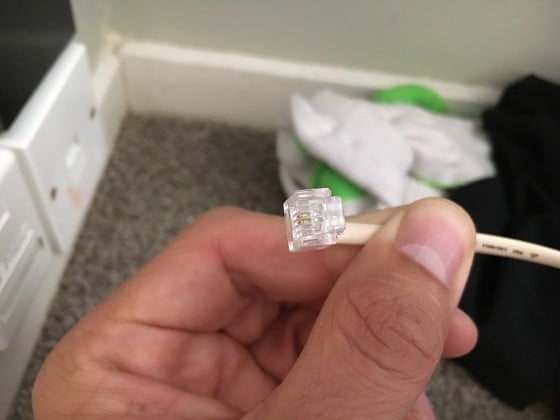

The code on the current cable is n53 c85 0014 of that helps

Both ends of the current cable look identical

Cheers

Create new topic
DarkShadow
1647 posts

Uber Geek
+1 received by user: 656


  #1699784 7-Jan-2017 11:09
Send private message

Post a photo?



InstallerUFB
840 posts

Ultimate Geek
+1 received by user: 219


  #1699820 7-Jan-2017 11:31
Send private message

it is more than likely an RJ12 plug onto a RJ12 plug on a flat ribbon cable







generaly if it is too short you move the router closer to the socket or move the socket closer to the router







You can get longer ones but the longer the flat ribbon cable is the worse your routers performance can be ( try to keep it under a couple of metres if you can - like the original, 5m is ~~ok,  10m pushing it, 10+ move the router or socket

phantomdb
585 posts

Ultimate Geek
+1 received by user: 103

Lifetime subscriber

  #1699822 7-Jan-2017 11:48
Send private message

get two new rj12 connectors and make a new cord using cat5e thus keeping the twisted pair and hopefully keeping your throughput.



id do a reboot of the router and write down the stats, SNR/DB/SPEED before and after swapping cords, you may find it still syncing within spec.




[ SIGNATURE HERE ]



phantomdb
585 posts

Ultimate Geek
+1 received by user: 103

Lifetime subscriber

  #1699823 7-Jan-2017 11:49
Send private message

https://www.jaycar.co.nz/products/communication-equipment/telephone/leads-cables/c/750A has options......








[ SIGNATURE HERE ]

Littlebush

4 posts

Wannabe Geek


  #1699827 7-Jan-2017 12:17
Send private message


Littlebush

4 posts

Wannabe Geek


  #1699828 7-Jan-2017 12:17
Send private message







Support Geekzone with one-off or recurring donations Donate via PressPatron.
Jase2985
13730 posts

Uber Geek
+1 received by user: 6202

ID Verified
Lifetime subscriber

  #1699849 7-Jan-2017 13:36
Send private message

looks like rj45 to rj12

afe66
3181 posts

Uber Geek
+1 received by user: 1678

Lifetime subscriber

  #1699855 7-Jan-2017 13:47
Send private message

Look up rj45 and rj12 on wikipedia and learn about the different types of plug and how they are labelled/named.



Takes about 20 minutes to learn about something new and its useful stuff to know.



(I did this when trying to make cables for my weather station)







A.





Littlebush

4 posts

Wannabe Geek


  #1699861 7-Jan-2017 13:58
Send private message

Thanks guys, I've enough here to move forward, will see how I go

InstallerUFB
840 posts

Ultimate Geek
+1 received by user: 219


  #1699880 7-Jan-2017 14:42
Send private message

Quick RJ plug ID chart - For Voice/xDSL circuits the two middle pins are normally use (shown as red & green here)



Click to see full size
