Hi,



what is the purpose of this microwave link at 286 Tuateawa Rd on the east coast of the Coromandel Peninsula?



It has a green Chorus cabinet next to it.











See it here;



https://gis.geek.nz/map/pointtopoint/@-36.6403988,175.5699039,13z







and here;



https://www.google.co.nz/maps/@-36.6356172,175.5687199,64a,47.8y,0.22t/data=!3m1!1e3!5m1!1e1







Looking at it in street view it appears to have a VHF whip on top and two horizontal UHF/VHF poles mounted.   (see attached).



https://cdn.geekzone.co.nz/imagessubs/42f90d709519bc7214609f707625909c.jpg



https://cdn.geekzone.co.nz/imagessubs/7cd8f453cdbc2635bdfd1ad232d53f6b.jpg










Create new topic
5884 posts

Uber Geek

Trusted
Lifetime subscriber

  #2401692 19-Jan-2020 17:04
Send private message quote this post

Might be a link off to an RBI site


3133 posts

Uber Geek

Trusted

  #2401693 19-Jan-2020 17:07
Send private message quote this post

You can click on the line and it tells you who the license owner is and what the frequency used is








9167 posts

Uber Geek

Lifetime subscriber

  #2401694 19-Jan-2020 17:21
Send private message quote this post

GIS Geek says its a chorus microwave connection


'That VDSL Cat'
11681 posts

Uber Geek

Trusted
Spark
Subscriber

  #2401698 19-Jan-2020 17:39
One person supports this post
Send private message quote this post

the lowband likely was used for voice (and possibly still is being used for it) before fibre was ran up there. apart from that i'd suspect it's intended as a secondary path if there is a fibre cut up there.







wouldn't make sense for their primary backhaul there not being over the fibre.



It is an interesting cabinet as there aren't many like it, but it's not bursting 5Ges all over you or anything.





#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.


3465 posts

Uber Geek

Trusted

  #2401946 20-Jan-2020 08:05
Send private message quote this post

Is multi access radio still in use? If so might be a link for that?





Sony Xperia X running Sailfish OS. https://sailfishos.org The true independent open source mobile OS
Samsung Galaxy Tab S3
Nokia N1
Dell Inspiron 14z i5


7259 posts

Uber Geek

Trusted
Subscriber

  #2401948 20-Jan-2020 08:20
Send private message quote this post

Are you sure its VHF antennas on top of the mast??, all I can see is a lightning arrestor at the very top and a couple of horizontal stays for the dish directly behind, no sign of a VHF whip or pair or UHF antennas behind.



Cyril


274 posts

Ultimate Geek


  #2402201 20-Jan-2020 11:30
One person supports this post
Send private message quote this post

Looking at the dates (2004 and 2007), it pre-dates the fibre between there and Coromandel which was funded under RBI 1.



As already said it is likely for "legacy" voice / POTS and will be replaced by Baseband IP in the next year or 2 most likely.
















2190 posts

Uber Geek

Trusted

  #2402281 20-Jan-2020 12:41
4 people support this post
Send private message quote this post

Chorus use this as one of their many points to broadcast mind control signals from.



Source: The voice in my head.




8 posts

Wannabe Geek


  #2402737 20-Jan-2020 23:16
Send private message quote this post

Thanks everyone (-oh except you muppet ;-)



Cyril, thank you for your trained eye spotting what was on the pole - ie nothing. I was just going off the photo too, but didn't see any cell antenna, and hadn't even considered it might go straight to copper.



I haven't been there but was planning to go on a holiday there and wondered what cellphone coverage would be and ended up finding the microwave link so wondered what its purpose was.  Also wondered what comms methods are used in remote areas like that.







The conclusion seems to be that the microwave link was most likely to supply POTS/voice to the locals, but has been superseded by fibre and is now a back-up of sorts.







If anyone is willing to indulge my curiousity I'd be interested to know;



-could a microwave link like this support the local population for DSL/internet?  (ie, is there enough bandwidth in the microwave link?)



-could a microwave link like this support 2G/3G/4G for the local population? (eg add some R/T cabinets and put 700/850MHz antenna on the pole. ignore economics)



-is there a website that shows the major fibre routes in NZ?  (I didn't know that they had run fibre from Coromandel to Tuateawa.)







-Kent


274 posts

Ultimate Geek


  #2402810 21-Jan-2020 09:40
One person supports this post
Send private message quote this post

fnarg7:



Thanks everyone (-oh except you muppet ;-)



Cyril, thank you for your trained eye spotting what was on the pole - ie nothing. I was just going off the photo too, but didn't see any cell antenna, and hadn't even considered it might go straight to copper.



I haven't been there but was planning to go on a holiday there and wondered what cellphone coverage would be and ended up finding the microwave link so wondered what its purpose was.  Also wondered what comms methods are used in remote areas like that.







The conclusion seems to be that the microwave link was most likely to supply POTS/voice to the locals, but has been superseded by fibre and is now a back-up of sorts.







If anyone is willing to indulge my curiousity I'd be interested to know;



-could a microwave link like this support the local population for DSL/internet?  (ie, is there enough bandwidth in the microwave link?)



-could a microwave link like this support 2G/3G/4G for the local population? (eg add some R/T cabinets and put 700/850MHz antenna on the pole. ignore economics)



-is there a website that shows the major fibre routes in NZ?  (I didn't know that they had run fibre from Coromandel to Tuateawa.)







-Kent









- They use radio/wireless/microwave links for DSL in some areas, such as Great Barrier Island which has a link back to the hill between Coromandel and Kennedy Bay



- They also use these kind of links to service rural cell sites, such as Opito and the top of the Coromandel.







However you either spend a huge amount of money putting in very fast links with very expensive hardware or you can end up with congestion. Excluding the install costs fibre is always the better option.

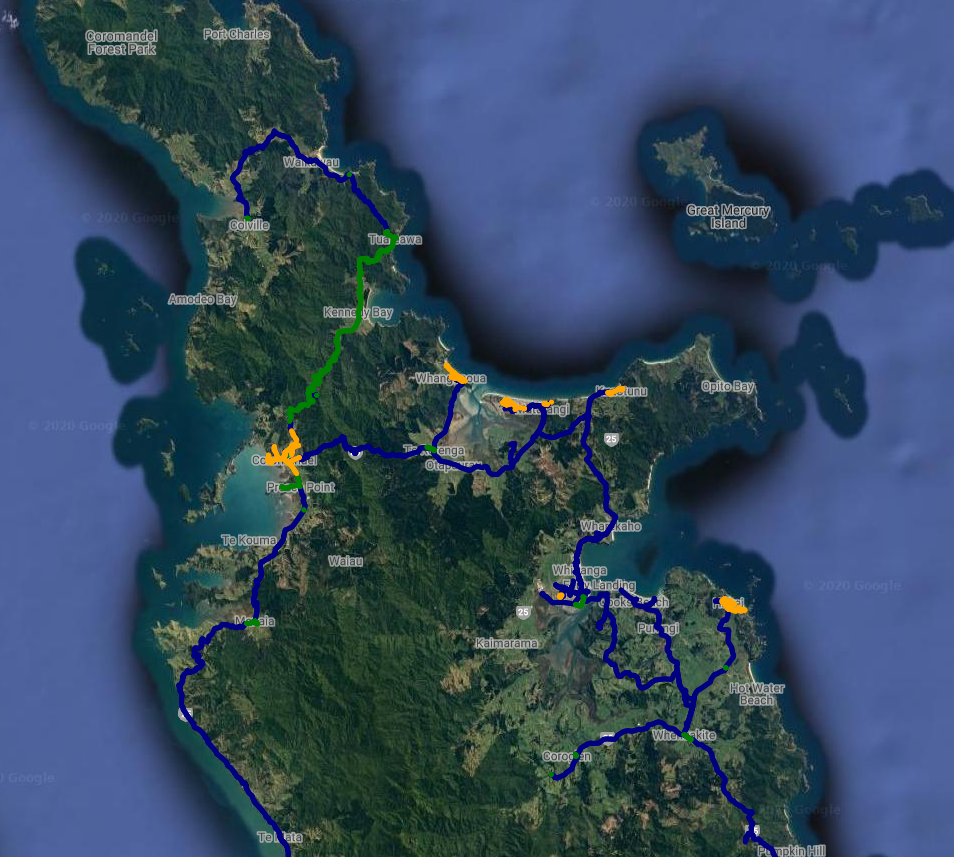

There is no public map but here is a snapshot of Chorus fibre in the Coromandel (the only provider with fibre in the Coromandel, excluding some other providers who go via Paeroa / Waihi on a trunk route to Tauranga)




108 posts

Master Geek


  #2402912 21-Jan-2020 11:47
Send private message quote this post

Exactly the same as what’s feeding the hut type cabinet near my mates house: https://gis.geek.nz/map/pointtopoint/link/xqxayeyj
and that cabinet is: https://gis.geek.nz/map/chorus/site/ybzpnpgz
