Forums › Desktop computing › Is my PSU ok (low voltage readings)?
freitasm

BDFL - Memuneh
80652 posts

Uber Geek
+1 received by user: 41037

Administrator
ID Verified
Trusted
Geekzone
Lifetime subscriber

#97751 20-Feb-2012 07:54
Send private message

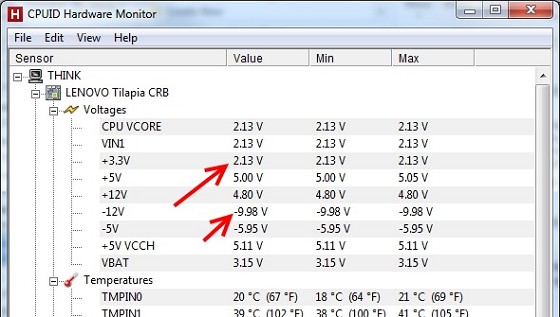

I've noticed my Lenovo ThinkCentre desktop is now and then shutting down on its own, with a second GPU. I've removed the GPU and it seems ok, but I've also noticed the PSU readings are a bit low:



Are these correct, or is this PSU in need of repair?






Referral links: Quic Broadband (free setup code: R587125ERQ6VE) | Samsung | AliExpress | Wise | Sharesies



Support Geekzone by subscribing (browse ads-free), or making a one-off or recurring donation through PressPatron.



Create new topic

xpd

xpd
Geek of Coastguard
14116 posts

Uber Geek
+1 received by user: 4578

Retired Mod
ID Verified
Trusted
Lifetime subscriber

  #583697 20-Feb-2012 08:47
Send private message

If it was me, Id be looking at repair/replacement. Ive always understood the 3.3v should remain around 3.3, regardless whats attached to the system.




XPD / Gavin



LinkTree









Kraven
738 posts

Ultimate Geek
+1 received by user: 190


  #583736 20-Feb-2012 10:26
Send private message

I'd be questioning the validity of those readings - +12V is showing as +4.8V - how can a system even function in that state?

Most likely it is simply a case of a under-powered PSU, so the quick fix here would be to replace it with a larger one.

freitasm

BDFL - Memuneh
80652 posts

Uber Geek
+1 received by user: 41037

Administrator
ID Verified
Trusted
Geekzone
Lifetime subscriber

  #583741 20-Feb-2012 10:31
Send private message

It's the standard PSU for this Lenovo ThinkCentre model. And I am even using a SSD instead of the original 3.5" HDD, so less load than the original...





Referral links: Quic Broadband (free setup code: R587125ERQ6VE) | Samsung | AliExpress | Wise | Sharesies



Support Geekzone by subscribing (browse ads-free), or making a one-off or recurring donation through PressPatron.





freitasm

BDFL - Memuneh
80652 posts

Uber Geek
+1 received by user: 41037

Administrator
ID Verified
Trusted
Geekzone
Lifetime subscriber

  #583765 20-Feb-2012 11:00
Send private message

Three year warranty on this desktop, so contacting Lenovo now...





Referral links: Quic Broadband (free setup code: R587125ERQ6VE) | Samsung | AliExpress | Wise | Sharesies



Support Geekzone by subscribing (browse ads-free), or making a one-off or recurring donation through PressPatron.



xpd

xpd
Geek of Coastguard
14116 posts

Uber Geek
+1 received by user: 4578

Retired Mod
ID Verified
Trusted
Lifetime subscriber

  #583792 20-Feb-2012 11:44
Send private message

Good luck... hope theyre more understanding with upgrades than what HP are. (HP wont help me because I installed Win7 64bit Enterprise instead of their default OS)




XPD / Gavin



LinkTree







grant_k
3539 posts

Uber Geek
+1 received by user: 124

Trusted

  #583795 20-Feb-2012 11:47
Send private message

I would use a multimeter to confirm those readings, as the A/D converter on the mainboard could be borked.  I would be very surprised if the system even booted with 3.3V rail at 2.1V!!!










Want to support Geekzone and browse the site without the ads? Subscribe to Geekzone now (monthly, annual and lifetime options).
Ragnor
8279 posts

Uber Geek
+1 received by user: 585

Trusted

  #583801 20-Feb-2012 11:55
Send private message

If those reading are accurate, the 3.3v and 12v rails are scary low.

freitasm

BDFL - Memuneh
80652 posts

Uber Geek
+1 received by user: 41037

Administrator
ID Verified
Trusted
Geekzone
Lifetime subscriber

  #583804 20-Feb-2012 11:56
Send private message

The only way to be sure is to get a technician around to measure it and replace if needed. Waiting for Lenovo to move now.




Referral links: Quic Broadband (free setup code: R587125ERQ6VE) | Samsung | AliExpress | Wise | Sharesies



Support Geekzone by subscribing (browse ads-free), or making a one-off or recurring donation through PressPatron.



grant_k
3539 posts

Uber Geek
+1 received by user: 124

Trusted

  #583808 20-Feb-2012 12:00
Send private message

freitasm: The only way to be sure is to get a technician around to measure it and replace if needed. Waiting for Lenovo to move now.

Freitasm, you surprise me!  A man of your abilities should easily be able to open the case and poke a multimeter into the appropriate pins on the mainboard power supply connector.  There are no dangerous voltages present -- those exist only inside the power supply enclosure.

Are you saying you don't own a multimeter?

Then go and buy one quick-smart.  It will be useful next time the battery in your car gets low and you need to recharge it.





freitasm

BDFL - Memuneh
80652 posts

Uber Geek
+1 received by user: 41037

Administrator
ID Verified
Trusted
Geekzone
Lifetime subscriber

  #583810 20-Feb-2012 12:02
Send private message

I had AA here this morning. We haven't used one of the cars in two weeks, waiting to get it to repairs, and with alarm and GPS tracking devices on, it was flat. I didn't have a starter.





Referral links: Quic Broadband (free setup code: R587125ERQ6VE) | Samsung | AliExpress | Wise | Sharesies



Support Geekzone by subscribing (browse ads-free), or making a one-off or recurring donation through PressPatron.



grant_k
3539 posts

Uber Geek
+1 received by user: 124

Trusted

  #583817 20-Feb-2012 12:09
Send private message

Even so, 2 weeks is a very short time for the battery to go flat.  I suspect you may be up for a new battery before winter.

We went overseas for almost 3 months and when we came back, our Hilux Ute started straight away.  2 weeks should be no problem at all.  A multimeter is a really handy thing to have, even for fault-finding the wiring inside your house, anything to do with your car, pretty much anything electronic.










Shop now at Mighty Ape (affiliate link).
Ragnor
8279 posts

Uber Geek
+1 received by user: 585

Trusted

  #584070 20-Feb-2012 18:06
Send private message

grant_k: A man of your abilities should easily be able to open the case and poke a multimeter into the appropriate pins on the mainboard power supply connector.  There are no dangerous voltages present -- those exist only inside the power supply enclosure.

Are you saying you don't own a multimeter?



That would probably void his warranty though, so is only advisable if outside of warranty.

freitasm

BDFL - Memuneh
80652 posts

Uber Geek
+1 received by user: 41037

Administrator
ID Verified
Trusted
Geekzone
Lifetime subscriber

  #584097 20-Feb-2012 18:44
Send private message

Opened a job with IBM. It's on site service, so let's see how it goes. The guy on the phone thinks the desktop shutdown is the motherboard, but seeing the power button only works again after removing and plugging the power cord back I still think it's the PSU.

Let's see what the technician says when s/he comes here.




Referral links: Quic Broadband (free setup code: R587125ERQ6VE) | Samsung | AliExpress | Wise | Sharesies



Support Geekzone by subscribing (browse ads-free), or making a one-off or recurring donation through PressPatron.



freitasm

BDFL - Memuneh
80652 posts

Uber Geek
+1 received by user: 41037

Administrator
ID Verified
Trusted
Geekzone
Lifetime subscriber

  #585807 23-Feb-2012 16:49
Send private message

The desktop has a worldwide warranty, but I am told Lenovo doesn't have the AMD models in AU/NZ, so at the end I will be getting an Intel-based replacement desktop. It doesn't worry me much at all.
