Mesh Wifi setup to support Hyperfibre 2

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › Mesh Wifi setup to support Hyperfibre 2

1 | 2

sbiddle

30853 posts

Uber Geek

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#2720665 8-Jun-2021 11:53

maveric:

What’s a recommended cable access point to consider? What brands?

Assuming your requirement is still Gigabit WiFi performance than I'd recommend 3 x Aruba AP-515 AP's and a 2.5Gbps POE switch. You should be able to source the hardware for probably $3500 or so

Jiriteach

1119 posts

Uber Geek

ID Verified

Lifetime subscriber

#2720687 8-Jun-2021 13:57

maveric:

Thanks for all the tips and advice thus far. Very insightful.

What’s a recommended cable access point to consider? What brands?

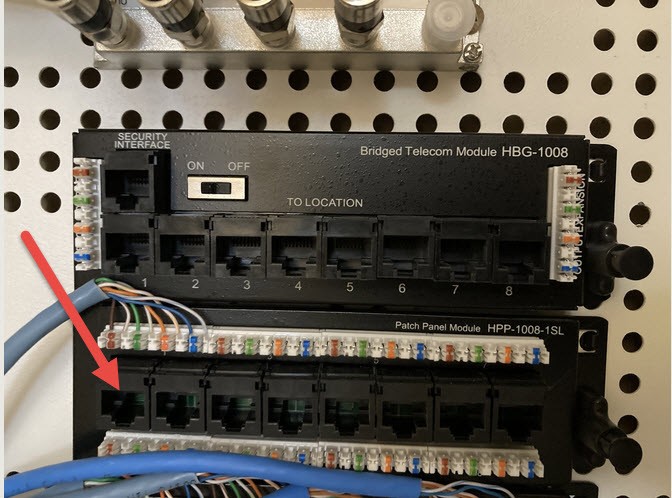

I got this bridged port installed from the ground floor and i checked all cables are in cat6.
Will this be of any help?

That bridged port patch panel is only going to provide point to point. You are going to need a 1gig+ switch so something like a 2.5gig or 10gig switch. POE switch would make sense then you can power any AP's as opposed to having to use injectors. Add AP's via POE - Unfi U6's are nice and powerful as well but will require a controller. They are powered by POE or injectors.

-- opinions expressed by me are solely my own. ie - personal

maveric

36 posts

Geek

#2720688 8-Jun-2021 14:01

Thanks. So a switch 1gig+ from the bridge port and will connect to the individual ports per floor, right? Could i use the HyperFibre ONT terminal provided which they said acts like a modem router too?

ripdog

548 posts

Ultimate Geek
Inactive user

#2720690 8-Jun-2021 14:05

Hi OP, any chance you could explain why exactly you need more than gigabit bandwidth? There really aren't that many usecases for it right now...

Jiriteach

1119 posts

Uber Geek

ID Verified

Lifetime subscriber

#2720691 8-Jun-2021 14:06

maveric: Thanks. So a switch 1gig+ from the bridge port and will connect to the individual ports per floor, right? Could i use the HyperFibre ONT terminal provided which they said acts like a modem router too?

Comes down to what you are trying to achieve. Can you share what your plan is? also how fast Hyperfibre did you sign up for or intend to sign up for?

The Hyperfibre ONT has 1 x 10gig port on it. The rest (4x) at 1gig.
So uplink the 10gig port via the patch panel into a 10gig switch and then patch off this to the panel.

This isnt going to achieve much however as you'll be limited by the device its connected to unless that device has a 10gig port on it which almost no do without a seperate card or similar.

Whats your plan?

-- opinions expressed by me are solely my own. ie - personal

Linux

11413 posts

Uber Geek

Trusted

Lifetime subscriber

#2720695 8-Jun-2021 14:14

ripdog:

Hi OP, any chance you could explain why exactly you need more than gigabit bandwidth? There really aren't that many usecases for it right now...

My switch is faster than your switch

Delorean

653 posts

Ultimate Geek

ID Verified

Trusted

Lifetime subscriber

#2720714 8-Jun-2021 14:29

Linux:

My switch is faster than your switch

Hang on, mine is red so it must be faster :)

Referral Link: | Quic Broadband (use R142206E0L2CR for free setup)

Lenovo

Shop now for Lenovo laptops and other devices (affiliate link).

michaelmurfy

meow
13242 posts

Uber Geek

Moderator

ID Verified

Trusted

Lifetime subscriber

#2720715 8-Jun-2021 14:39

As I've asked before - what are you hoping to achieve by switching to Hyperfibre? It doesn't sound like your use is actually that extreme.

Are you having bandwidth issues currently you're hoping Hyperfibre will fix?

Michael Murphy | https://murfy.nz
Referral Links: Quic Broadband (use R122101E7CV7Q for free setup)

Are you happy with what you get from Geekzone? Please consider supporting us by subscribing.
Opinions are my own and not the views of my employer.

cisconz

cisconz
1341 posts

Uber Geek

ID Verified

Trusted

Lifetime subscriber

#2720780 8-Jun-2021 16:56

That bridge port is going to do nothing for you.

It is designed to connect phone lines (Or ATA ports) to multiple outlets around the house.

Data outlets need to be connected via the patch panel modules to a switch (Or router etc).

Hmmmm

cyril7

9058 posts

Uber Geek

ID Verified

Trusted

Subscriber

#2720829 8-Jun-2021 16:59

Doubt those terminations would do 10g much justice, I recommend getting them re terminated regardless of what speed you may or may not use.

Cyril

Delorean

653 posts

Ultimate Geek

ID Verified

Trusted

Lifetime subscriber

#2720838 8-Jun-2021 17:35

I struggle to get 500Mbs (WiFi) on an AmpliFI HD Mesh setup. that router isn't bad for a consumer model, I am struggling to see any benefit with having Hyperfibre.

The majority of my network is wired, with the phones and laptops on wifi - on wired I am getting 950/500 on local servers, internationally it drops considerably.. so wouldn't hyperfibre suffer from the same issue, meaning international traffic speeds would be similar to a subscriber on a 950/500 plan?

Or am I missing something?

Referral Link: | Quic Broadband (use R142206E0L2CR for free setup)

cyril7

9058 posts

Uber Geek

ID Verified

Trusted

Subscriber

#2720839 8-Jun-2021 17:47

So unless you are moving large files from a to B I fail to understand the need for much over a few hundred Mb/s, I manage commercial and govt installations with hundreds of users, and monitoring the WAN interfaces I can assure you a 950/450 connection rarely if ever gets to capacity.

Cyril
