Hi All,



I'm a long time lurker, and have always managed to find the info required until now.







Situation:
-I have a detached garage which is around 5m from the house, and I'd like to run networking out to it from the house (gigabit is fine).
-I'd like to run a fibre line instead of Ethernet, to avoid any potential issues with inductance & interference.
-There is an existing underground conduit already carrying the power cable to the shed. I can use this, however space is a little tight for other cables (hence the preference for running a single fibre line).
-The total length of fibre required is just under 20M from the switch inside the house to the point in the garage I'd like to place the media converter.I already have a Ubiquiti Unifi switch with unused SFP ports, so was looking at various SFP modules and a fibre/Ethernet media converter.



The only thing I'm having a hard time getting my head around is the fibre cables themselves. I know I need LC connectors, as they're much easier to pull through the conduit, and I'm ideally after Single Mode (SM), so that I only have to use one fibre line. However, it seems I can only find 10m SM cables, and no 20m ones. Whereas there's plenty of longer Multi Mode ones.



Question:
Is it possible to only use one of the two fibres for a SM connection, essentially being able to have two separate connections over one MM cable?

I was looking at using the following equipment:

Ubiquiti Media Converter (UF-AE)
Ubiquiti Single Mode Fibre SFP modules x2 (UF-SM-1G-S)



I'll decide on cable once I figure out what I need (hence asking here).


View this topic in a long page with up to 500 replies per page Create new topic

This is a filtered page: currently showing replies marked as answers. Click here to see full discussion.

Mehrts

1112 posts

Uber Geek
+1 received by user: 984

Trusted

  #2468782 23-Apr-2020 16:54
Send private message

Ok, an update:
All the gear arrived today, so I thought I'd bench test everything before deploying it.
Everything works flawlessly, using one strand of Single Mode fibre, I've got a solid gigabit connection.

My setup is as follows:

In the house:
- Ubiquiti Unifi US-16-150W switch
- Ubiquiti US-SM-1G-S SFP Transceiver (blue)

- 20m Dynamix Single Mode Duplex Fibre Cable (P/N: FSM-LCLC-20)

In the garage:
- Ubiquiti US-SM-1G-S SFP Transceiver (yellow)
- Ubiquiti UF-AE Media Converter
- Ethernet cable supplying PoE to converter
- Ubiquiti Unifi US-8-60w switch




Mehrts

1112 posts

Uber Geek
+1 received by user: 984

Trusted

  #2976438 2-Oct-2022 18:54
Send private message

Was tinkering round in the shed today and thought I'd update this thread.

Over the last couple of years of extending my LAN out to the garage via fibre, it hasn't missed a beat once.

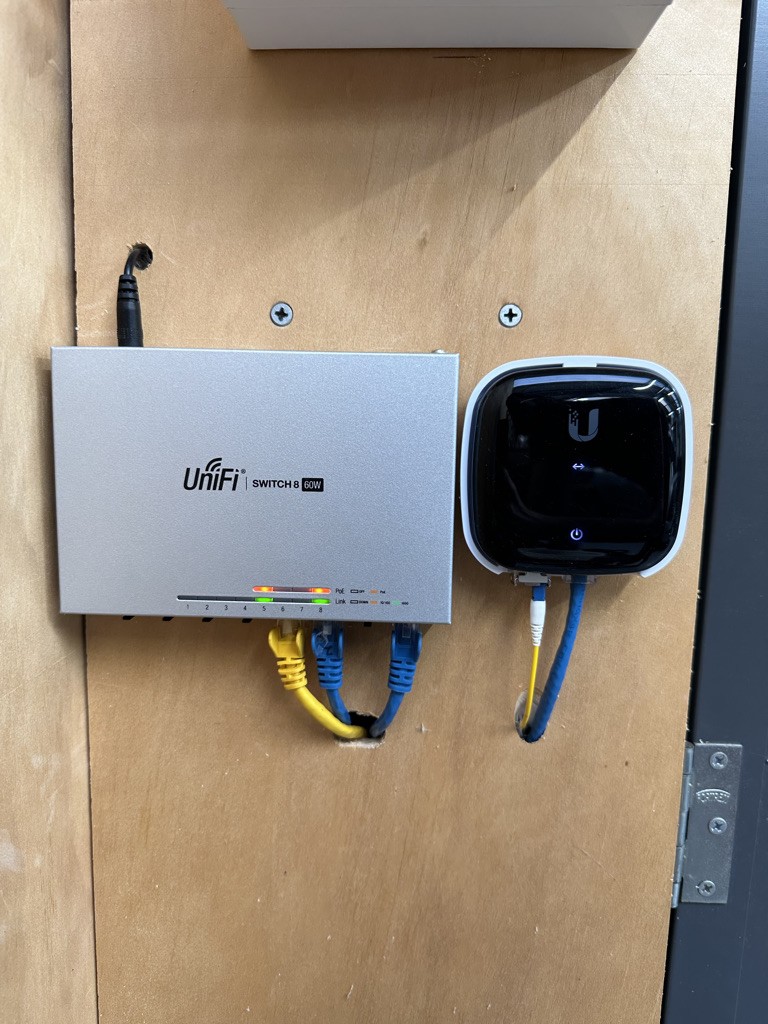

The fibre terminates to the Ubiquiti UF-AE media converter which is powered by the Ubiquiti US-8-60w switch. All unused ports have been blanked off with proper plugs.

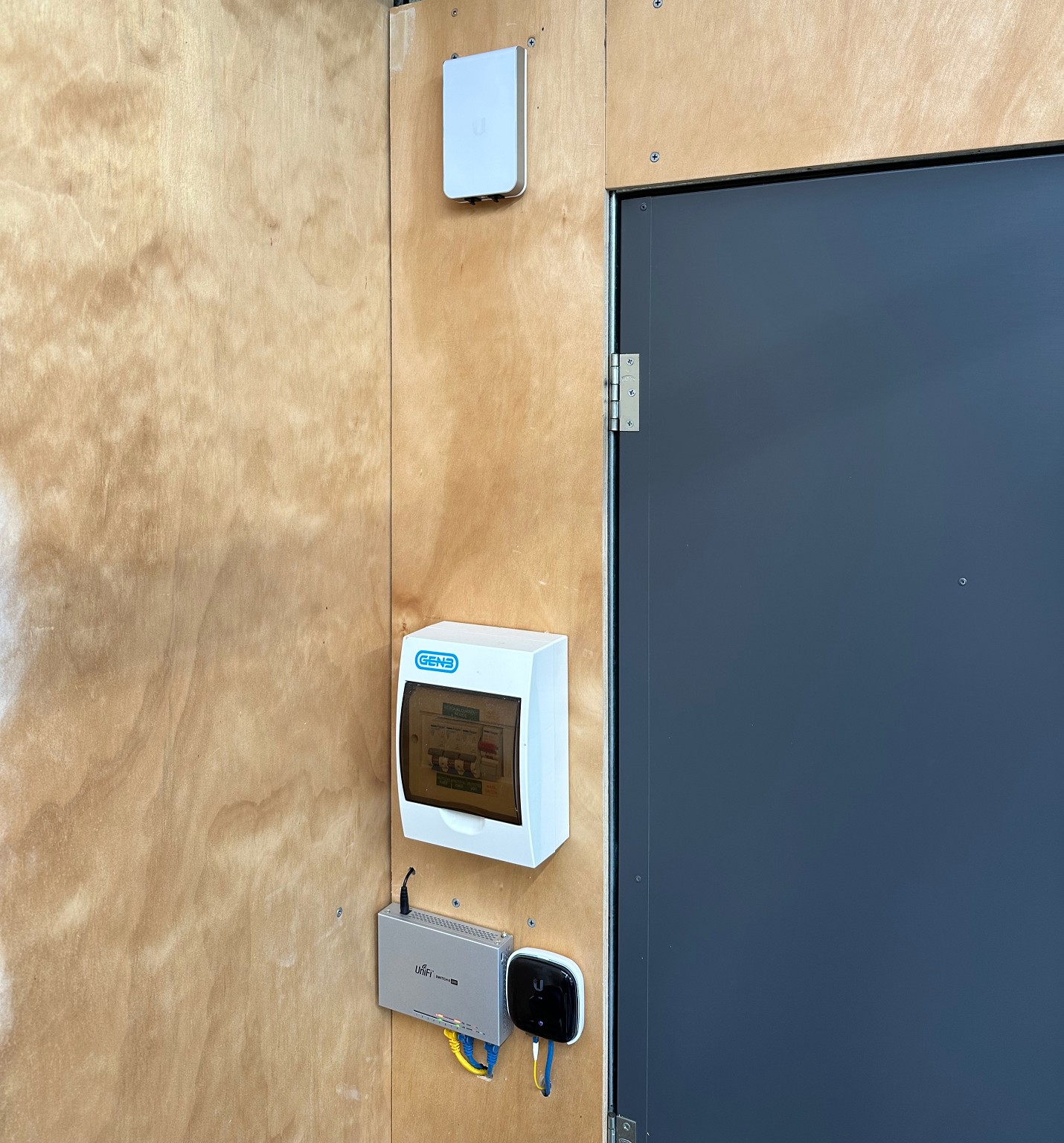

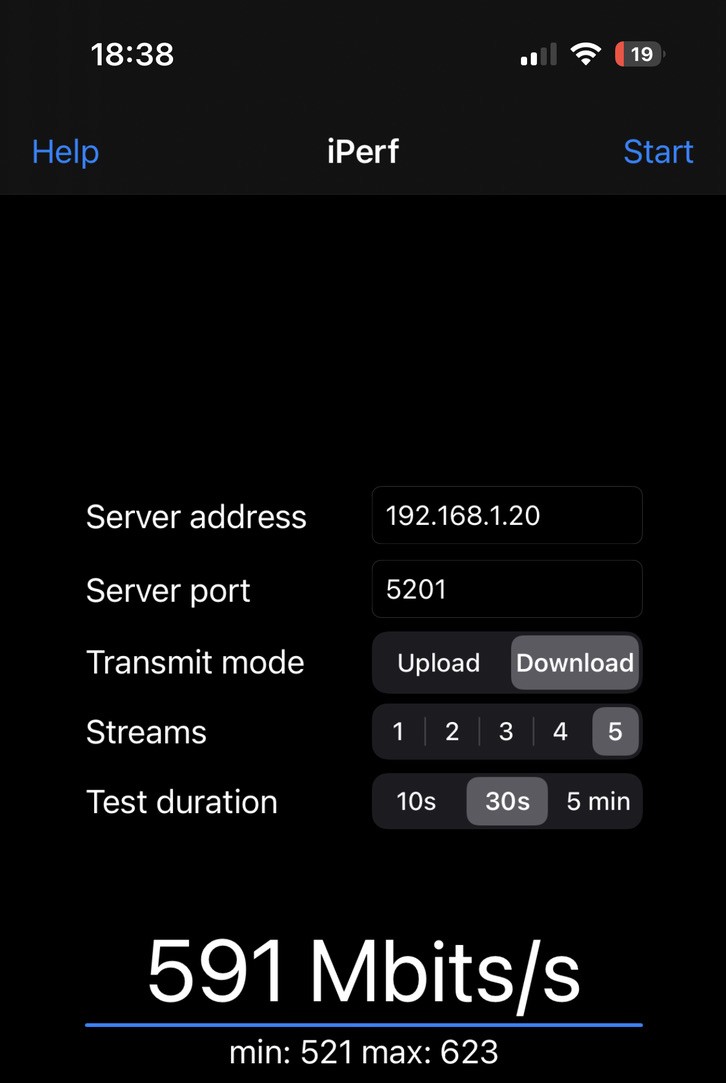

Wifi is delivered via a UAP-AC-IW AP, and reaches speeds of over 600Mbps via iPerf. Not bad for a garage!

Still haven't decided on garage cameras yet, but they'll be some flavour of Reolink as I've been running an 8MP system for the past 12 months with zero issues.



Anyway, pics:
