Hi I bought some tools to wire a Cat6 cable between my Fibre ONT to a wall outlet.

I'm confused because every site tells you a different colour order.
But the important thing is to match the order of both ends ...

But the wall jack has weird numbering


Let's say I ignore the numbers, and put the wires in this order at the wall outlet, what is the order at the RJ45 end?
PS what home tool can i use to punch into this jack?

Create new topic
1548 posts

Uber Geek
+1 received by user: 381


  Reply # 1448885 11-Dec-2015 20:45
Send private message

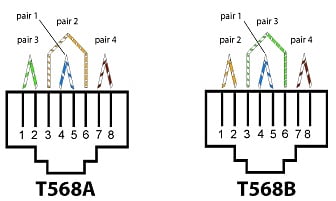

wire them for T-568A at both ends

those colours are correct for the pins numbers. don't worry about what other sites say as the layouts (how they're wired internally) vary.

what brand is that, btw?

buy yourself a proper punch down tool with cutting function and network tester.  both are very cheap.  using the wrong tool to force the wires into that is likely to result in the pins being spread too much, leaving you with dodgy connections.

808 posts

Ultimate Geek
+1 received by user: 206


  Reply # 1448887 11-Dec-2015 20:50
Send private message

Sorry but no 'home' tool is used for these jacks - you need an AT&T 110 punch down tool ( note NOT a Krone punch down tool as used in BT jkpts)





The jack you have can be wire either from the outside -> in or from the inside -> out, the 110 tool can be used on this jack either way around





Click to see full size





Use T-568A for NZ domestic use - The Pin numbering is for a RJ45 Plug

1548 posts

Uber Geek
+1 received by user: 381


  Reply # 1448893 11-Dec-2015 21:11
One person supports this post
Send private message

I use one of these
cheap and effective.



Mad Scientist
18625 posts

Uber Geek
+1 received by user: 2367

Trusted
Lifetime subscriber

  Reply # 1448927 11-Dec-2015 22:04
Send private message

Thanks for the advice on the numbering ... more questions sorry

1. I'm so near yet so far!! Interweb suggests I can use a skinny flat screwdriver ... that's all i got!
2. I bought some real cheap RJ45 heads from Aliexpress ... hopefully that will work ... but ... so near yet so far still!

21243 posts

Uber Geek
+1 received by user: 4273

Trusted
Subscriber

  Reply # 1448928 11-Dec-2015 22:07
Send private message

joker97: Thanks for the advice on the numbering ... more questions sorry
1. I'm so near yet so far!! Interweb suggests I can use a skinny flat screwdriver ... that's all i got!


So buy the proper tool or write all the outlets you use a screwdriver on off. It doesnt work long term reliably.

2. I bought some real cheap RJ45 heads from Aliexpress ... hopefully that will work ... but ... so near yet so far still!


All I have got have been fine. Except for one lot of coloured ones where the plastic was too brittle and the retaining tab just snapped off.




Richard rich.ms



Mad Scientist
18625 posts

Uber Geek
+1 received by user: 2367

Trusted
Lifetime subscriber

  Reply # 1448977 11-Dec-2015 23:51
Send private message

ok thanks, ordered a punch down tool for $1.60 US ... something to look forward to next year!

26635 posts

Uber Geek
+1 received by user: 6141

Moderator
Trusted
Biddle Corp
Lifetime subscriber

  Reply # 1449002 12-Dec-2015 07:10
Send private message

joker97: ok thanks, ordered a punch down tool for $1.60 US ... something to look forward to next year!


Did you buy the correct one? 110 and Krone are not compatible.





Mad Scientist
18625 posts

Uber Geek
+1 received by user: 2367

Trusted
Lifetime subscriber

  Reply # 1449042 12-Dec-2015 09:02
Send private message

Thanks ... luckily it was a basic 110.

EVEN more luckily it turns out my crimping kit (cheap crimper and a basic stripper) has a 110 punch tool function on the stripper!

Glad to report that my UFB router is where it needs to be!


1872 posts

Uber Geek
+1 received by user: 1023


  Reply # 1449052 12-Dec-2015 09:34
Send private message

@joker97 Do you want to borrow some tools?




Location: Dunedin



Mad Scientist
18625 posts

Uber Geek
+1 received by user: 2367

Trusted
Lifetime subscriber

  Reply # 1449053 12-Dec-2015 09:35
Send private message

Hi thanks, I have completed the job! But thanks.

1984 posts

Uber Geek
+1 received by user: 133

Trusted

  Reply # 1459566 31-Dec-2015 16:05
Send private message

InstallerUFB: Sorry but no 'home' tool is used for these jacks - you need an AT&T 110 punch down tool ( note NOT a Krone punch down tool as used in BT jkpts) The jack you have can be wire either from the outside -> in or from the inside -> out, the 110 tool can be used on this jack either way around

Click to see full size

Use T-568A for NZ domestic use - The Pin numbering is for a RJ45 Plug


Always put the wire wire from inside -> out — its not a telephone jack! Don't follow the numbering, just follow the colour markings and note which way around the orange and green are for the "A" version of wiring. Keep the amount of untwisted wire as short as possible and ensure its fully punched into the slot. One cable per outlet and each cable goes directly back to the central convergence point; theres no daisychain like we used to do with phone wiring.




Qualified in business, certified in fibre, stuck in copper, have to keep going  ^_^

4318 posts

Uber Geek
+1 received by user: 2316

Trusted

  Reply # 1459570 31-Dec-2015 16:15
Send private message

Have you got a cable tester? You can get ones like this:


Off TradeMe for about five bucks. They're basic, but at least they'll confirm that all your wires are connected and in the correct order.



Mad Scientist
18625 posts

Uber Geek
+1 received by user: 2367

Trusted
Lifetime subscriber

  Reply # 1459576 31-Dec-2015 16:34
Send private message

I can see, so I don't need a cable tester.
Anyway, I've done it, happy days gigatown! Although there isn't much content that can/need to be downloaded at 100MBps
