Basic home network installation

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › Basic home network installation

jrcollins

38 posts

Geek
+1 received by user: 4

#298886 24-Jul-2022 16:25

Just trying to install a very basic wired home network which will only have a couple of connected devices at this stage.

I plan to have a patch cable from the router to a jack point and from there to an ethernet switch. The switch will be in a closet behind the wall where the jack point for the router is. Each device will plug into a separate jack point and from there to the switch.

Any problems with this set up?

Regarding jack points, can anyone recommend flush boxes and face plates to use and where I can order them and do flush boxes have to be fixed to wall studs or is it ok to screw them into the plasterboard?

1 | 2

402 posts

Ultimate Geek
+1 received by user: 391

ID Verified

Lifetime subscriber

#2945967 24-Jul-2022 16:41

Don't screw a flushbox (or anything, really) straight into plasterboard. Get one that's intended for that, like these: Easifix Flush Box (vestaelectrical.co.nz) they kinda clamp onto it. Very tidy.

Dynamic

4036 posts

Uber Geek
+1 received by user: 1862

ID Verified

Trusted

Lifetime subscriber

#2945968 24-Jul-2022 16:41

Your strategy sounds good to me.

I've used these in the past successfully, particularly when I can push the cable through the floor:

https://dynamix.co.nz/FMT-C6-1P
https://dynamix.co.nz/FMT-C6-2P

Have a look here for jacks https://dynamix.co.nz/78231 and faceplates and flush boxes are on this site as well, plus tools. Google for the part numbers to find a retailer.

Fixing to a stud is going to give a more secure result, with fixing to plasterboard being the second best option. Here is an example of a plasterboard mount clip, to which faceplates can be attached. https://dynamix.co.nz/TSMULC

“Don't believe anything you read on the net. Except this. Well, including this, I suppose.” Douglas Adams

Scott3

4187 posts

Uber Geek
+1 received by user: 3003

Trusted

Lifetime subscriber

#2945969 24-Jul-2022 16:42

No issue having the switch remote from the router. My router is in the office, and switch is in the networking cabinet in the garage.

For face-plates & Mech's, neatest solution is to go to an electrical wholesaler (Corys / Ideal / JA Russell etc), and get whatever matches your houses current faceplates.

Downside is it is tricky environment for a retail customer. Basically the prices are inflated (and not marked), and the trade customers have a negotiated discount (i.e. trade less 40%).

They will happily sell to you as a retail customer , but it is a bit of a lottery what kind of discount the person at the desk gives you. If they charge you full "trade" price, it will be quite expensive, but they often put on a cira 30% discount which makes it a bit more reasonable.

All my flush boxes are screwed to studs.

tweake

2716 posts

Uber Geek
+1 received by user: 1168

#2945971 24-Jul-2022 16:46

how are you powering the switch?

be a little careful of electronics in closets, if they get covered they can overheat, plus dust, can mean a fire.

put the flush boxes on the studs. you can get ones that fit plaster but i only ever used those in emergency cases.

richms

29246 posts

Uber Geek
+1 received by user: 10352

Trusted

Lifetime subscriber

#2945975 24-Jul-2022 17:44

Flush boxes screw to studs. Wouldnt bother with them, get the ring shaped ones if you are wanting to go beside studs, otherwise just direct fix to the gib or use a C clip if you're putting them somewhere else on the wall. Direct fix is fine with 1 or 2 ports where you're chopping out a small area, but I find with 4 ports you're getting really close to the mounting screws and its very easy for the gib to blow out when youre putting in the anchors so I only do it for 1/2 port installs.

Richard rich.ms

jrcollins

38 posts

Geek
+1 received by user: 4

#2945988 24-Jul-2022 18:22

tweake:

how are you powering the switch?

be a little careful of electronics in closets, if they get covered they can overheat, plus dust, can mean a fire.

put the flush boxes on the studs. you can get ones that fit plaster but i only ever used those in emergency cases.

Actually, that could be an issue as there's no power point in the closet. Might have to rethink how I'm going to do it.

Geekzone

Want to support Geekzone and browse the site without the ads? Subscribe to Geekzone now (monthly, annual and lifetime options).

Spyware

3826 posts

Uber Geek
+1 received by user: 1374

Lifetime subscriber

#2945989 24-Jul-2022 18:28

Have a power outlet installed.

Spark Max Fibre using Mikrotik CCR1009-8G-1S-1S+, CRS125-24G-1S, Unifi UAP, U6-Pro, UAP-AC-M-Pro, Apple TV 4K (2022), Apple TV 4K (2017), iPad Air 1st gen, iPad Air 4th gen, iPhone 13, SkyNZ3151 (the white box). If it doesn't move then it's data cabled.

TinkerOn

10 posts

Wannabe Geek
+1 received by user: 5

#2945993 24-Jul-2022 19:24

Scott3:
Downside is it is tricky environment for a retail customer. Basically the prices are inflated (and not marked), and the trade customers have a negotiated discount

Luckily there are ways around that (post others if you know of any please, I dislike being taken for a ride by the shops):

www.electricaldirectltd.co.nz

www.kiwisparks.co.nz

jrcollins

38 posts

Geek
+1 received by user: 4

#2946084 24-Jul-2022 23:09

richms:

Flush boxes screw to studs. Wouldnt bother with them, get the ring shaped ones if you are wanting to go beside studs, otherwise just direct fix to the gib or use a C clip if you're putting them somewhere else on the wall. Direct fix is fine with 1 or 2 ports where you're chopping out a small area, but I find with 4 ports you're getting really close to the mounting screws and its very easy for the gib to blow out when youre putting in the anchors so I only do it for 1/2 port installs.

It's 2 ports so should be ok then. Just curious about the "ring shaped" ones you mentioned. Do you have a link to one?

richms

29246 posts

Uber Geek
+1 received by user: 10352

Trusted

Lifetime subscriber

#2946148 25-Jul-2022 10:46

jrcollins:

It's 2 ports so should be ok then. Just curious about the "ring shaped" ones you mentioned. Do you have a link to one?

https://goactive.nz/products/flush-box-single-plastic - No kinking of wires trying to fit thru a hole and push the plate in. More solid than a C clip. But even tripping over cables to a plate in a C clip I have had the tab on the RJ45 usually let go before it rips the plate out of the wall.

Richard rich.ms

Mehrts

1112 posts

Uber Geek
+1 received by user: 984

Trusted

#2946152 25-Jul-2022 10:57

jrcollins:

Actually, that could be an issue as there's no power point in the closet. Might have to rethink how I'm going to do it.

You could get a Power over Ethernet (PoE) powered switch, and put a PoE injector by where the router is.

A couple of examples of PoE powered switches:

https://www.pbtech.co.nz/product/SWHUBI1105/Ubiquiti-UniFi-Switch-USW-Flex-Mini-5-Port-Managed

https://www.pbtech.co.nz/product/SWHUBI10563/Ubiquiti-Unifi-USW-Flex-3-IndoorOutdoor-5-Port-Lay

Lenovo

Shop now for Lenovo laptops and other devices (affiliate link).

nztim

4065 posts

Uber Geek
+1 received by user: 2776

ID Verified

Trusted

TEAMnetwork

Subscriber

#2946156 25-Jul-2022 11:27

EasiFix Boxes are a perfectly acceptable solution for mounting data outlets on Gib - of course of you have access to the studs you should use that as a solution

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

Lxj

2 posts

Wannabe Geek
+1 received by user: 1

#2946323 25-Jul-2022 20:01

my existing setup, fitting your question

retrofitted power point, main WAN from Spark coming out from different room

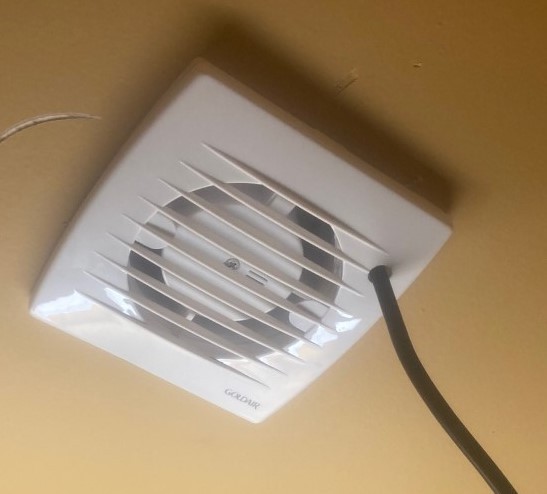

it gets quite hot in closet, so I added 1x 100 extractor fan

used gib brackets for install of power point and RJ45 socket

jrcollins

38 posts

Geek
+1 received by user: 4

#2946351 25-Jul-2022 22:48

Lxj:

my existing setup, fitting your question

retrofitted power point, main WAN from Spark coming out from different room

it gets quite hot in closet, so I added 1x 100 extractor fan

used gib brackets for install of power point and RJ45 socket

Impressive and yes, I can see why you would need a fan.

jrcollins

38 posts

Geek
+1 received by user: 4

#2946742 26-Jul-2022 22:14

Does anyone have any experience with this type of face plate and mounting block?

https://www.pbtech.co.nz/product/ITPFPKS002/Dynamix-FP-2KS-Dual-Port-RJ-45-Keystone-Face-Plate

Can they be screwed directly into plasterboard?

1 | 2
