jkbrenton

4 posts

Wannabe Geek
+1 received by user: 1


#305831 7-Jun-2023 10:09
Send private message

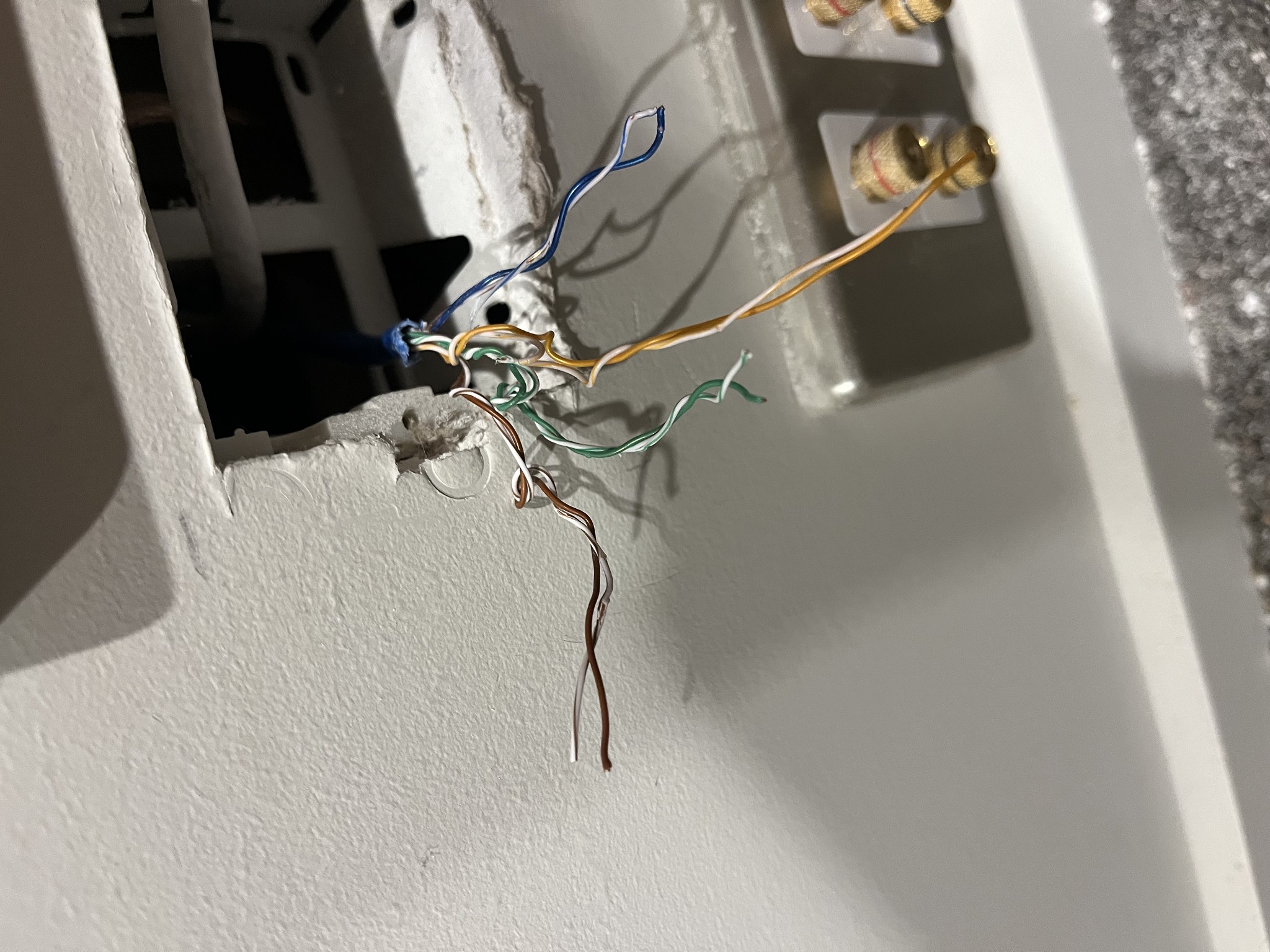

What wires go where?






Create new topic
CYaBro
4708 posts

Uber Geek
+1 received by user: 1182

ID Verified
Trusted

  #3085862 7-Jun-2023 10:16
Send private message

That's not an ethernet port, it's a telephone socket, but that is ethernet cable.



Usually the blue pair is used for telephone.





Opinions are my own and not the views of my employer.




Aaron2222
219 posts

Master Geek
+1 received by user: 108


  #3085863 7-Jun-2023 10:16
Send private message

That port is a phone port, not an Ethernet port (though Ethernet cable is often used for phone signals). Do you know what's connected to the other end of that cable?


jkbrenton

4 posts

Wannabe Geek
+1 received by user: 1


  #3086054 7-Jun-2023 12:21
Send private message

CYaBro:

That's not an ethernet port, it's a telephone socket, but that is ethernet cable.


Usually the blue pair is used for telephone.



Can I change it to an Ethernet port since I have the wires?



hsvhel
1273 posts

Uber Geek
+1 received by user: 596

ID Verified

  #3086055 7-Jun-2023 12:22
Send private message

little bit more to it than that





Referral Link Quic



Free Setup use R502152EQH6OK on check out






cyril7
9075 posts

Uber Geek
+1 received by user: 2499

ID Verified
Trusted
Subscriber

  #3086056 7-Jun-2023 12:23
Send private message

Hi, possibly, but it depends how the house wiring has been run. As its setup for phone its quite possible its run in daisy chain, which means you will need to connect all segments somehow.



What other phone outlets are in the house. At this point one would reach for a cable toner and work out where each run goes to and make a plan.



Cyril


Jase2985
13732 posts

Uber Geek
+1 received by user: 6205

ID Verified
Lifetime subscriber

  #3086108 7-Jun-2023 15:44
Send private message

those wires have been butchered and will need to be cut back a bit not giving you much to work with.
