Mitsubishi Heatpump cables?

Forums › Gadgets, robotics, home automation, electronics (including wearables) › Mitsubishi Heatpump cables?

BarTender

3606 posts

Uber Geek

ID Verified

Trusted

Lifetime subscriber

#265469 22-Jan-2020 21:50

I'm looking to purchase a few of these so I have a few spare. But they are only $2 and the shipping is $14. It's still $14 if I order 10 of them.

Either from the US or SIN store.

http://www.usastore.revolectrix.com/Products_2/Cellpro-4s-Charge-Adapters_2/Cellpro-JST-PA-Battery-Pigtail-10-5-Position

http://www.store.revolectrix.com/Cellpro-Battery-Pigtail-10-5-Position?ext=F

As the Singapore store seems to be cheaper with UPS shipping.

So is there anyone else on here looking to build a Mitsubishi Heatpump controller with either a Wemos D1 or similar to control their heatpump as that seems to happily work with it as per: https://community.home-assistant.io/t/mitsubishi-ac-with-wemos-d1-mini-pro/107007

shanes

258 posts

Ultimate Geek

Lifetime subscriber

#2405045 22-Jan-2020 21:59

If you are keen to make your own cable, I think I have some plugs and the contacts for them that fit CN105.

Have you seen the "Hacking a Mitsubishi Heatpump..." page on Nicegear?

BarTender

3606 posts

Uber Geek

ID Verified

Trusted

Lifetime subscriber

#2405048 22-Jan-2020 22:05

Happy to DIY but if I could track down an existing pigtail that just makes life a little easier.

The connector is a https://www.digikey.co.nz/products/en?keywords=PAP-05V-S with 5 pins.

So if you have a prefab one then that would be brilliant as I have the wemos and seen the nicegear post and used some of the work on the https://github.com/SwiCago/HeatPump repo for my own code.

shanes

258 posts

Ultimate Geek

Lifetime subscriber

#2405058 22-Jan-2020 22:20

I got these https://nz.rs-online.com/web/p/pcb-connector-housings/4766798/ and https://nz.rs-online.com/web/p/pcb-connector-contacts/6881385/

Can only find one housing (and contacts) at the moment, yours if you want it, crimping the contacts was a bit of a pain...

mattz

23 posts

Geek

#2429161 29-Feb-2020 09:52

@Bartender, did you end up ordering these cables and integrating your heatpump with the wemos? If you still have a spare I'd be happy to buy one off you to do the same. One thing I was wondering though is the cable even necessary couldn't you just use 4 jump wires and connect those to the ESP8266?

dukezoid

49 posts

Geek

#2632442 8-Jan-2021 14:53

Hey folks, I'm also on the Mitsi AC automation mission - best way to acquire CN105 cables? Ta

rscole86

4973 posts

Uber Geek

Moderator

Trusted

Lifetime subscriber

#2632515 8-Jan-2021 16:34

I ordered mine from rs online (first link posted by shanes), however I ordered pre-crimped cables, rather than trying to do it myself.

dukezoid

49 posts

Geek

#2632519 8-Jan-2021 16:40

sweet, thanks

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

catdog

107 posts

Master Geek

#2632601 8-Jan-2021 21:35

I still have spares from last year when I did mine. Send me a PM with your details and I'll post one to you.

hwomc20

6 posts

Wannabe Geek

#3053744 23-Mar-2023 11:48

rscole86: I ordered mine from rs online (first link posted by shanes), however I ordered pre-crimped cables, rather than trying to do it myself.

I am trying to find pre-crimped cables, but cannot find them. What do I need to search for? I tried "JST, PA Female" and a few other search expressions in rs-online but got only results of plugs without cables. I would expect pre-crimped cables to have cables connected. Where can I find them?

catdog

107 posts

Master Geek

#3053760 23-Mar-2023 12:16

I used RS part number 512-8737 for the pre-crimped leads and 476-6798 for the housing.

hwomc20

6 posts

Wannabe Geek

#3090599 16-Jun-2023 08:44

Thank you! - I had some other project keeping me up in between, but now slowly getting back to this.

Somehow, my order at RS did not work; also, the shipping was quite high, so I thought I'll try something else.

Searching for JST PA (5 pins) on Aliexpress did not give me reasonable results: JST PH (with also 2mm) is plentiful available, but according to https://www.mattmillman.com/info/crimpconnectors/common-jst-connector-types/, JST PH and JST PA are not compatible.

Double checking on the manufacturer's specs: JST PA connector https://www.jst.com/products/crimp-style-connectors-wire-to-board-type/pa-connector/; the data sheet contains a match with the manufacturer number PAP-05V-S of RS part number 512-8737.

Looking for the manufacturer number on Aliexpress returns a number of results, including pre-crimped and wired ones like this one:

Pricing seems reasonable with less than $10 for 5 cables including shipping. I will order a pack and update here once I have tried them out.

Thanks @catdog; without your hint I would not have found this!

Hwale

69 posts

Master Geek

#3091685 18-Jun-2023 18:31

Just bumping this to ask if you got those CN105 connectors, if you have one to sell or if anyone else has one I could buy?

hwomc20

6 posts

Wannabe Geek

#3098473 1-Jul-2023 21:03

As promised, the follow-up to my Aliexpress purchase here:

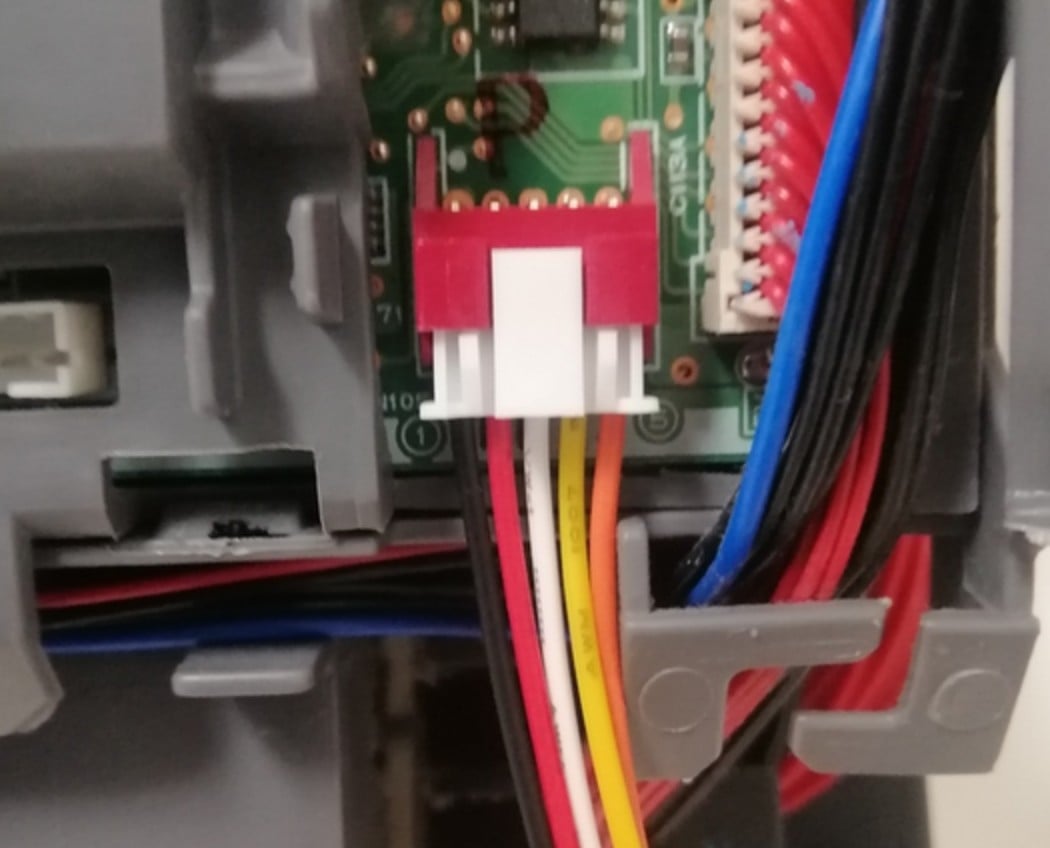

The plugs fit! At least mechanically; I have not tried functionality yet (more about that here: https://www.geekzone.co.nz/forums.asp?forumId=73&topicId=303958).

I purchased the smallest available pack of 5 but need only one, and therefore have a few spare in case anyone nearby needs some.

idt

1 post

Wannabe Geek

#3104945 17-Jul-2023 10:00

Thanks for the Ali-express info. I could use one of your spares if still available. I'm aiming to connect an ESP32 to the CN-CNT interface on a Panasonic unit.

Fracas

1 post

Wannabe Geek

#3195156 14-Feb-2024 16:50

Hi, I'm in the process of getting an ecodan to talk to HA via an esp32 card, but I cant find the CN105 interface plug locally here in Christchurch. Has anyone still got one that they could spare?
