Forums › Freeview (DVB-T/DVB-S) › FreeView tuning for Samsung with UHF Whangarei Area
Kiwichick86

5 posts

Wannabe Geek


#294012 28-Feb-2022 09:29
Send private message

Hi there,



I have currently moved and wanting to set up freeview live on a Samsung smart tv with a UHF aerial. I also have a sat box if that's needed.



I have tried auto tuning on different settings etc. with no luck at all.



Can someone please help me with what settings should be what??? (totally clueless here *awkward face*) lol







I did enquire about a local tech coming out but that would be over $300!!







Any advice is appreciated :)

Create new topic
Spyware
3818 posts

Uber Geek
+1 received by user: 1366

Lifetime subscriber

  #2876120 28-Feb-2022 10:20
Send private message

For UHF all you do is select DTV and autotune, no requirement to choose any settings.




Spark Max Fibre using Mikrotik CCR1009-8G-1S-1S+, CRS125-24G-1S, Unifi UAP, U6-Pro, UAP-AC-M-Pro, Apple TV 4K (2022), Apple TV 4K (2017), iPad Air 1st gen, iPad Air 4th gen, iPhone 13, SkyNZ3151 (the white box). If it doesn't move then it's data cabled.



mentalinc
3384 posts

Uber Geek
+1 received by user: 1023

Trusted

  #2876122 28-Feb-2022 10:22
Send private message

Unless you moved from Aussie, then it's very unlikely to work at all.




CPU: AMD 5900x | RAM: GSKILL Trident Z Neo RGB F4-3600C16D-32GTZNC-32-GB | MB:  Asus X570-E | GFX: EVGA FTW3 Ultra RTX 3080Ti| Monitor: LG 27GL850-B 2560x1440



Quic: https://account.quic.nz/refer/473833 R473833EQKIBX

DjShadow
4222 posts

Uber Geek
+1 received by user: 1322

ID Verified
Trusted
Subscriber

  #2876125 28-Feb-2022 10:29
Send private message

To confirm, make sure your TV is plugged into an aerial lead which runs to the UHF antenna and is pointing at Mt Parihaki



Kiwichick86

5 posts

Wannabe Geek


  #2876127 28-Feb-2022 10:32
Send private message





Thanks for your quick replies.



So i've tried the following:







Aerial: Terrestrial and Channel type: Digital & Analogue and aerial is pointing towards mt parihaki. Tv cable is plugged into the aerial socket with F male plug on tv end.







TV is a:



55" TU7000 Crystal UHD 4K Smart TV 2020



UA55TU7000SXNZ

Spyware
3818 posts

Uber Geek
+1 received by user: 1366

Lifetime subscriber

  #2876128 28-Feb-2022 10:36
Send private message

F connection on TV is satellite tuner noting that some terrestrial antenna installs do use F type wall sockets. Terrestrial uses Belling Lee connector on TV https://en.wikipedia.org/wiki/Belling-Lee_connector




Spark Max Fibre using Mikrotik CCR1009-8G-1S-1S+, CRS125-24G-1S, Unifi UAP, U6-Pro, UAP-AC-M-Pro, Apple TV 4K (2022), Apple TV 4K (2017), iPad Air 1st gen, iPad Air 4th gen, iPhone 13, SkyNZ3151 (the white box). If it doesn't move then it's data cabled.

Kiwichick86

5 posts

Wannabe Geek


  #2876407 28-Feb-2022 17:39
Send private message

So i had some success. I went and got an adapter as you suggested "spyware" and i can get two channels. How do i get more? lol






Want to support Geekzone and browse the site without the ads? Subscribe to Geekzone now (monthly, annual and lifetime options).
Spyware
3818 posts

Uber Geek
+1 received by user: 1366

Lifetime subscriber

  #2876418 28-Feb-2022 18:24
Send private message

The cable run most likely goes to a Sky dish rather than a UHF antenna. Call an  installer who can tell you exactly where it runs. Certainly not a TV problem.




Spark Max Fibre using Mikrotik CCR1009-8G-1S-1S+, CRS125-24G-1S, Unifi UAP, U6-Pro, UAP-AC-M-Pro, Apple TV 4K (2022), Apple TV 4K (2017), iPad Air 1st gen, iPad Air 4th gen, iPhone 13, SkyNZ3151 (the white box). If it doesn't move then it's data cabled.

Kiwichick86

5 posts

Wannabe Geek


  #2876420 28-Feb-2022 18:26
Send private message

There's no stat dish on the house and the cable looks like it goes straight to the UHF.

Spyware
3818 posts

Uber Geek
+1 received by user: 1366

Lifetime subscriber

  #2876470 28-Feb-2022 18:35
Send private message

You still need an installer because signal is crap.




Spark Max Fibre using Mikrotik CCR1009-8G-1S-1S+, CRS125-24G-1S, Unifi UAP, U6-Pro, UAP-AC-M-Pro, Apple TV 4K (2022), Apple TV 4K (2017), iPad Air 1st gen, iPad Air 4th gen, iPhone 13, SkyNZ3151 (the white box). If it doesn't move then it's data cabled.

DjShadow
4222 posts

Uber Geek
+1 received by user: 1322

ID Verified
Trusted
Subscriber

  #2876471 28-Feb-2022 18:36
Send private message

Is there any chance you could maybe put some pictures up of the aerial clearly showing the cable connection to it? I'm just wondering it's in not great shape

richms
29098 posts

Uber Geek
+1 received by user: 10208

Trusted
Lifetime subscriber

  #2876578 28-Feb-2022 21:27
Send private message

There is a good chance that the cable goes nowhere or to a input in another room where it was fed from a modulator on a sky box rather than to the antenna.



If you cant trace the cable in a direct feed back to the antenna, get someone in with a meter that can check it out. Possibly the antenna is corroded or the cable is full of water too. Again, that needs a signal meter to check out.




Richard rich.ms






Shop now at Mighty Ape (affiliate link).
Gurezaemon
~HONYAKKER!~
1417 posts

Uber Geek
+1 received by user: 1565

ID Verified
Lifetime subscriber

  #2876641 1-Mar-2022 08:33
Send private message

Not sure if it's related, but if you don't have line of site to the top of Parihaka, you'll struggle getting all of the channels. I'm just behind a dip with Parihaka only just visible through heavy trees, and only semi-regularly get a reliable signal.




Get your business seen overseas - Nexus Translations

Kiwichick86

5 posts

Wannabe Geek


  #2876802 1-Mar-2022 11:31
Send private message

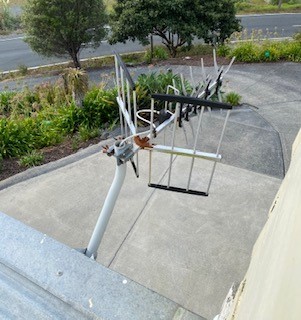

I have a clear sight of it which is a bonus. Attached is a pic of the aerial. Looks a bit rusted in places.
